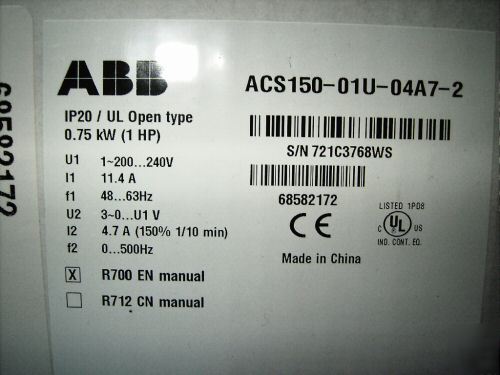

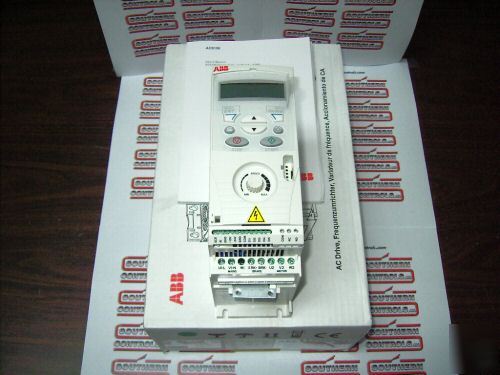

Abb ACS150 drive/inverter
(constant torque at a max. ambient temperature 40°C)
(at a max. ambient temperature of 40°C)
1.5 x I2N for 1 minute every 10 minutes
1.8 x I2N for 2 s every 10 minutes
brake chopper standard (100% braking capability)
-10 to 40°C (14 to 104°F), no frost allowed,
50°C (122°F) with 10% derating
Rated current available at 0 to 1000 m
(0 to 3281 ft) reduced by 1% per 100 m
(328 ft) over 1000 to 2000 m (3281 to 6562 ft)
Lower than 95% (without condensation)
NCS 1502-Y, RAL 9002, PMS 420 C
Programmable control connections
0 (2) to 10 V, Rin > 312 k Ohm
12 to 24 V DC with internal or external supply, PNP and NPN, pulse train 0 to 16 kHz.
Low voltage Directive 73/23/EEC with supplements
EMC Directive 89/336/EEC with supplements
Quality assurance system ISO 9001
Environmental system ISO 14001
These units are surplus stock and are new in the factory box unless otherwise described. All units come with a 7 day DOA warranty and can be exchanged for another unit if avaliable. If you have any questions or need any help please give us a call at (***)-272-9895 or visit our website at . Representative Photo.Item you received may vary. Please feel free to make an offer all offers will be seriously entertained
