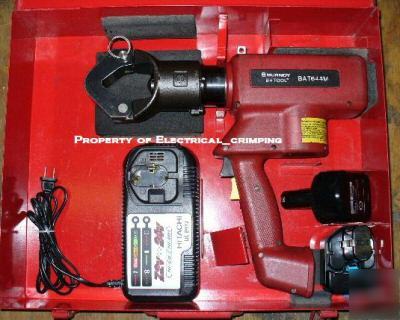

Burndy BAT644 hydraulic crimper thomas betts die tool
Battery Actuated Tool - Hydraulic Self contained - 11 Ton
The BURNDY BATOOLâ„¢ series of Battery Actuated Tool products
can be operated with only one hand, making them the only true,
one-handed battery powered crimping and cutting tools available
The BURNDY BATOOLâ„¢ BAT644M tool incorporates a constant
power (no pulse) microhydraulic pump with true, industry standard,
10,000 psi output, for consistent compression connections every
time. The BAT644M features BURNDY's Y644M die-less tool
head to install connectors without the needs for dies, and
incorporates the patented, full 360O infinitely rotatable head design
• True, one-handed operation for advance,
• 10,000 psi constant output pump
• Patented, infinite 360O head rotation
• Field-proven, existing head design
technology, changeable at our factory
• Less than 15 minute rapid battery
• Battery status L.E.D. indicators
• Audible "pop-off" and Green L.E.D.
indicates properly completed crimps
• Ergonomic tool design and grip area
• Pump efficiency of 85% with direct drive
#6 -1000 kcmil YA-L, YA-2LN, YA
Output Pressure: 10,000 psi (700 bar)
Tool Weight: 16.0 lbs (7.26 kg)
• Industry standard pressure for reliable
• Versatile tool head positioning lets user
• Allows use of standard BURNDY dies
• Less "down-time" due to fast battery
• Allows user to determine status of
• Assures proper crimps with both audible
and visual indicators, leaving no doubt
• Better balance eases operation and
• Smoother, quieter, more efficient tool
• Sturdy, time-proven case design
provides superior protection and stores
