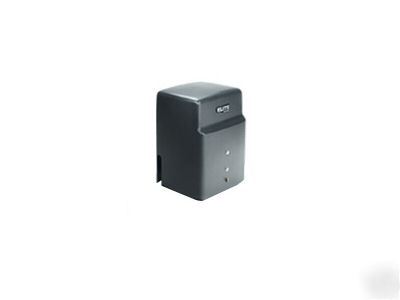

Elite sl-3000-ul hi traffic comm. slide gate operator
Please E-mail us at ****@fastaccesssecurity.com for additional information about this elite operator or any other elite operator. We stock ALL models of Elite gate operators in addition to ALL accessories including loop detectors, transmitters, receivers, magnetic gate locks and photoelectric safety sensors!!!!
Price is for 1 NEW / In Original Box/Crate "ELITE" SL-3000 High Traffic Commercial Slide Gate Operator !!!!!
The SL-3000-ULâ„¢ is smooth and exceptionally quiet. This unit can handle continuous cycles daily with gates up to 1000 lbs. and 37 ft. in length and has a traveling speed of 12 inches per second. It is designed for high traffic applications such as heavily accessed gated
communities and commercial buildings.
THE SL-3000-UL SERIES SLIDE GATE OPERATORS
Modular Board – Uses LEDs to indicate all input and output functions of the gate operator.
ERD – If the gate hits a vehicle while closing, it reopens. If it hits a vehicle while opening, it stops, reverses 4 to 6 inches and stops again.
Digital Motor Protection – Entrapment sensor shuts off the motor after it reaches the stall amp for 3 seconds, reverses direction for several inches, and stops.
Electronic Inputs – Radio receiver, key switch, safety loop, center loop, telephone entry system, computer input, fire dept. key switch & 3-push-button station.
Timer – Adjustable timer can be set from 0 to 60 seconds.
Power Input On/Off Switch – Controls power input to the board with convenient switch.
Power Management – Board includes electronic power management with over current shutdown and automatic recovery.
Magnetic Lock – With Omni Option board, magnetic lock system is incorporated, allowing you to easily add an electromagnetic locking system to the gate. (see our store for inventory)
Burglar Alarm – With Omni Option board, interfaces with existing home alarm or alarm output.
3 Push Button Control – On board gate operator
Intelligent Master/Slave – Precise, synchronized movement and communication between two gate operators using 3 wire RS-485 bi-directional technology.
Spike Suppressors – 20,000 Amps and near lightning protection with modular omni surge suppressor. Initial response time: 0.000000000001 seconds.
Alternate Outputs – With Omni Option Board 3 push button command control, burglar alarm input and output. QCC option available.
Gate Traveling Time – Adjusted by a precision mechanical device and electrical limit switch system.
Soft Stop – Gate travels through the cycle at normal speed and comes to a stop slowly for more accurate gate cycle. Equipped with integrated time delay for long mechanical life expectancy.
Integrated Loop Detectors – Easy to install,modular, plug in loop detector inputs for exit loop, center loop, and safety loop. 120 VAC Power – Built-in 120 VAC power receptacle (NEMA 5-15).
Motor Drive – Solid-State electronic motor drive system is incorporated into board.
Safety Alarm – If the gate hits an object twice while opening or closing, the system will shut down and alarm will sound for five minutes. After five minutes the system will automatically reset itself. To reset the
The SL-3000-ULâ„¢ is smooth and exceptionally quiet. This unit can handle continuous cycles daily with gates up to 1000 lbs. and 37 ft. in length and has a traveling speed of 12 inches per second. It is designed for high traffic applications such as heavily accessed gated communities and commercial buildings.
Elite’s operators are skillfully crafted in the USA. Every unit is carefully inspected both electronically and mechanically to provide the quality expected. Elite uses computer aided design to assure the most precise fit for their operator components. High quality and years of proven reliability places Elite SL Series slide gate operators ahead of the competition.
Chassis – Constructed with 1.4" sanded, welded, and gold zinc plated sheet metal.
Worm Gear Reduction – 30-to-1 worm gear reduction in an oil bath.
Motor – 1/2 hp, instant reversing, 120VAC, 4 amp, 1625 rpm, high speed ball bearings.
Cover – High density polyethylene plastic for excellent heat and corrosion resistance.
Finishing – All metal parts are gold zinc plated for rust proof protection.
Emergency Release – Hand crank is standard. Best option is our DC-1000U™.
Output Shaft – 1†cold rolled steel.
Capabilities – Maximum gate length 37'. Maximum gate weight 1000 lbs.
Gate Traveling Speed* – 12" per second average.
Dimensions – L18" X W19" X H25"
Approval – ETL and UL Listed and compliant to UL325 and UL991 standards.
•#41 chain is guided by two slotted UHMW rollers which prevent the chain from slipping off of the drive sprocket, thereby requiring less maintenance.
•The SL Series use a solid steel, machined pulley and notched v-groove belt for highly efficient torque transfer from motor to gear reducer.
•The 1/2 HP, instant reversing parking gate motor uses high speed ball bearings for a smooth and quiet operation.
•A highly efficient, extremely quiet, 30 to 1 worm gear reducer is used.
The SL-3000-ULâ„¢ is manufactured with a precision limit switch system. This system uses high speed ball
bearings and high quality components for efficiency. The QCC is a function of Elites’ slide gate operators that can be enabled by installation of a optional “Code Button†into the OmniOption control board sold
exclusively by Elite. Recommended for large gates, 16 feet and longer, this unit is ideal for industrial applications like storage facilities, warehouses, and gated communities with a guard house. The illustrations below visually describe the effectiveness of the QCC. Picture #1: The authorized command vehicle enters
and leaves the loop. Picture #2: The gate closes as the authorized vehicle clears the loop. Picture #3: Unauthorized vehicle attempts to enter, but QCC stops the gate, which forces the unauthorized vehicle to either move ahead (if there is room) or back up. QCC will not reset until the unauthorized vehicle has cleared the loop.
QUICK CLOSE CIRCUIT FEATURES OF THE SL-3000-ULâ„¢ SLIDE GATE OPERATOR
The digital current sensor continuously monitors the motor current. It can be set for both the opening and closing cycles. If the gate is closing and hits a vehicle, the sensor detects the increased load on the motor and reverses. If the gate is opening and hits a vehicle, it stops and reverses 4 to 6 inches. The sensor is smart enough to operate on off-level installations and not to react to wind resistance.
The QCC is a function of Elites’ slide gate operators that can be enabled by installation of a optional “Code Button†into the OmniOption control board sold exclusively by Elite. Recommended for large gates, 16 feet and longer, this unit is ideal for industrial applications like storage facilities, warehouses, and gated
communities with a guard house. The
Gate operator installations should be completed by a qualified installer only. Fast Access Security Corp. assumes no liability if product is installed incorrectly. Please see owners / installation manual for further details.
