Locknetics lc-505 power supply - 1A 12/24 vdc
Locknetics provides modular power supplies, designed to make it easy and cost effective to power electrical locking systems. The 500 Series Power Supplies are available in three models each UL Listed as a General Purpose Power Supply. The 505, 510 and 515 Series all feature low voltage DC, regulated, filtered power supplies with a built in battery charging circuit. Each is designed to provide easy system interface with Locknetics locking devices, station controls and consoles.

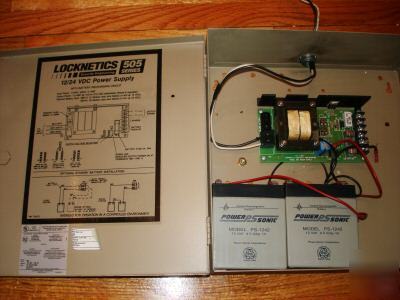

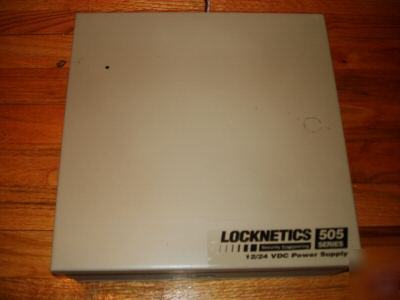

A NEMA Grade 1 approved enclosure is universal throughout the line, measuring 12"x12"x4". The 500 Series provides a built in battery charging circuit as a standard feature. Standby battery packs are optional and can be added in the field.

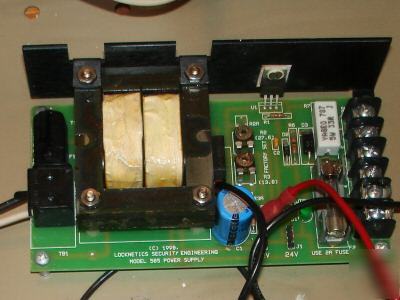

The 505 model provides 1 amp of output current at 12 and 24 volts. Output voltage is field selectable by moveable jumpers. It is UL Listed, filtered and regulated, with a built in battery charging circuit.

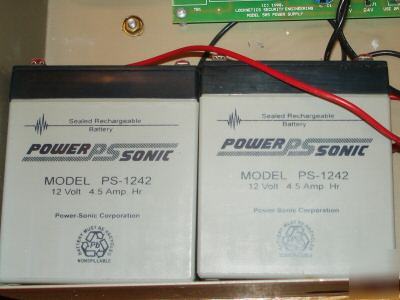

Standby battery kits (SBP1 or SBP2) may also be added to the 505 Series power supply at the factory or in the field. A key lock cover, power line cord and emergency interface relay module (EIR-5) are available as factory installed options.
