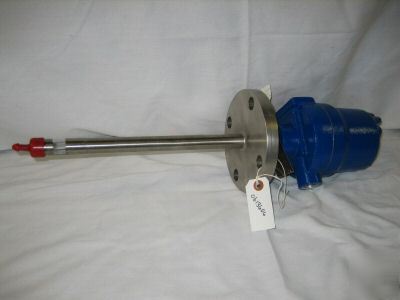

New magnetrol ultrasonic level switch 10 inch 613606
Magnetrol Echotel Model 911 Ultrasonic Level Switch
This model can sense the presence or absence of liquids in a transducer gap by utilizing continuous wave ultrasonic technology. These units are suitable for clean liquid applications having low viscosity, low aeration and a low percent of solids. The measurement is not affected by shifts of specific gravity or conductivity
Electronics Model Number Breakdown:
Setpoints - Single Point Ultrasonic Level Switch
Output Signal - DPDT hermetically sealed relay; 5 amps @ 120/240 VAC or 24 VDC
Housing - Cast Aluminum NEMA 4X/7/9
Transducer Model Number Breakdown:
Setpoints - Single Gap Transducer
Process Connection - 3/4" NPT (See Note Below *)
Transducer Materials - Hastelloy C
Actuation Length (inches) -10"
* This Sensor utilizes the optional 2 inch, 150 Lb. mounting flange.
