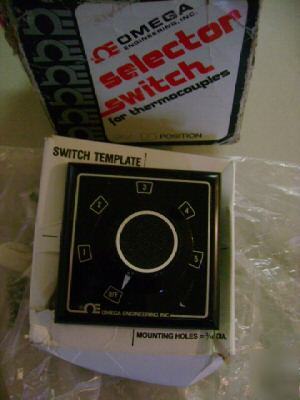

New omega OSW3-5 rotary selector switch
OSW, SW142, SW143 and SW144 Series:Rotary Selector Switches
Gold or Silver Plated Contacts
2 or 3 Poles in 76 mm (3") and 127 mm (5") sizes
2, 3, or 4 Poles in 1/4 DIN Size
Wire Connecting Screws Included
SW142 for 1/4 DIN 2 pole silver-plated contacts
SW142G for 1/4 DIN 2 pole gold-plated contacts
SW143 for 1/4 DIN 3 pole silver-plated contacts
SW143G for 1/4 DIN 3 pole gold-plated contacts
SW144 for 1/4 DIN 4 pole silver-plated contacts
SW144G for 1/4 DIN 4 pole gold-plated contacts
OSW3 for 3in. size 2 pole silver-plated contacts
OSWG3 for 3in. size 2 pole gold-plated contacts
OSW5 for 5in. size 2 pole silver-plated contacts
OSWG5 for 5in. size 2 pole gold-plated contacts
OSWT for 5in. size 3 pole silver-plated contacts
OSWGT for 5in. size 3 pole gold-plated contacts
Contact Action(SW series only)
Nothing(leave field blank) for OSW series
Nothing(leave field blank) for Standard Grip
For isothermal, low resistance switching of temperature measurement circuits, OMEGA offers three styles of selector switches. The OSW style features silver plated contacts, while the OSWG line includes gold plated contacts. The SW14 1/4 DIN switches come with gold or silver-plated contacts. Each style offers 2 to 34 positions in a break-resistant Noryl case.
The isothermal design of these rotary switches minimizes temperature gradients between the input and output thermocouple wiring. This in turn minimizes errors in transmitting thermocouple signals due to the generation of a thermal emf at the wire junctions. The low resistance of the silver or gold plated contacts also enables switching of temperature sensitive resistance devices, such as RTDs and thermistors.
Two pole SW and OSW series switches have a convenient . off. position. The . off. position may be left as an open circuit or shorted to keep spurious signals from registering on thermocouple instruments.Each pole is fully isolated. For quick and easy wiring, the terminals located at the rear of the switch are clearly marked.
OMEGA is pleased to offer a rotary selector switches in a 1/4 DIN size. Like our other rotary selector switches, this model is available with Break Before Make and Make Before Break contact action. Models are available with 2 to 34 positions in 2, 3 or 4 pole versions. Available with a standard round knob or optional pistol-grip handle. The 1/4 DIN switch also has . jab-in. style connections.
* Specify contact action: "B" = Break Before Make,
