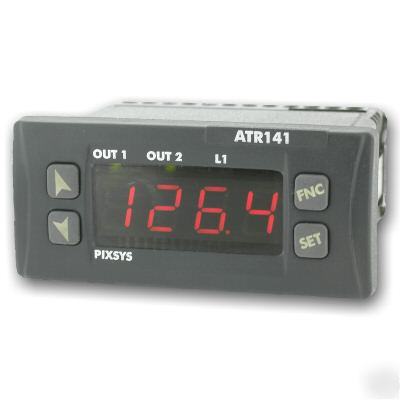

Pixsys ATR141-ad double setpoint controller 32X74
NIE are an official Pixsys Reseller.
Controller double setpoints , size 32x74, 4 digits, selectable inputs RTD / Tc / 4...20mA / 0...10V, output Relays/Ssr, power supply 12…24 Vdc/Vac 50/60Hz
Brand new with a two year manufacturers warranty.
SIZE: 32x74(frontal)x58mm POWER SUPPLY: 12...24Vac , 12...35 Vdc POWER CONSUMPTION: 2W DISPLAY: 4 red digits, green LEDs, decimal point OPERATING CONDITIONS: 0...40°, humidity 35...95% INPUTS: 1 selectable for TC K , R , J , S PT100 , NI100 ,PT500 , PT1000 , PTC , NTC 0/4...20mA , 0...10Volt Potentiometers <= 6KΩ , <= 150KΩ OUTPUTS: Control relay 10A (version AD) Alarm relay 5A SSR command CONTROL MODE: ON/OFF , PID + Autotuning (Heating+Cooling PID) ACCURACY: 0.5%±1digit for TC/RTD; 0.2%±1digit for mA/V SAMPLING TIME: 75ms SEALING: IP54 Frontal, IP30 Box, IP20 Terminal blocks CONFIGURATION: parameters protected by password Memory Card for quick configuration and for serial productions
http://www.pixsys.net/foto_prodotti/file/ATR121-141.pdf
