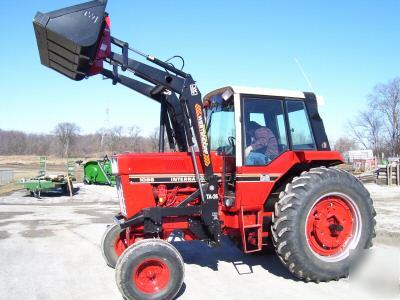

Westendorf TA26 front end loader for case/ih tractors
Brand New Westendorf Quick Attach Front-End Loader.
PRICE IS FOR A COMPLETE, READY TO INSTALL, BLACK TA26 Loader, Which Includes The Following:
* Hydraulic Hose kit to attach to the Tractors Rear Hyd Outlets.
* ONE Set of Mounting Brackets for ONE of the Tractors Listed in the List Below.
The Internal I-Beam construction of the 'TA' Series of Westendorf Loaders makes it possible to have the Lower Profile Loader arms, which of course provides better visibility!
Specifications are as Follows;
* 30 to 120hp for 2WD Tractors.
* 30 to 90 hp for 4WD Tractors.
* Maximum Lift Height 125" / 10'- 5"!
* Lifting Capacity at Max Lift Height (19" forward of pivot pin) is 3000lb's!
* Lift Arm Cylinders are 3"!
* Bucket Cylinders are 2-1/2".
* Total Package Weight With Bucket And Mounting Brackets 1755lbs.
Fits all 2WD Tractors Listed below, and fits 4WD Tractors when Listed with 4WD:
Case/IH Models: C50 2&4WD, C60 2&4WD, C70 2&4WD, C80 2&4WD, C90 2&4WD, C100 2&4WD, CX50 4WD, CX60 4WD, CX70 4WD, CX80 4WD, CX90 4WD, CX100 4WD, JX55 2&4WD, JX65 2&4WD, JX75 2&4WD, JX85 2&4WD, JX95 2&4WD, JX80U 2&4WD, JX90U 2&4WD, JX100U 2&4WD, JX1060C 4WD, JX1070C 4WD, JX1075C 4WD, JX1080U 2&4WD, JX1090U 2&4WD, JX1100U 2&4WD, MX80C 4WD, MX90C 4WD, MX100C 4WD, MX100, MX110, MX120, MXU100 4WD, MXU110 4WD, 380B, 385 4WD, 485 2&4WD, 495 2&4WD, 585 2&4WD, 595 2&4WD, 685 2&4WD, 685XL 4WD, 695 2&4WD, 730, 800, 830, 870, 885 2&4WD, 885XL 4WD, 895 2&4WD, 930, 970, 995 2&4WD, 1030, 1031, 1070, 1170, 1175, 1194 2&4WD, 1290 2&4WD, 1294 2&4WD, 1390 2&4WD, 1394 2&4WD, 1490 2&4WD, 1494 2&4WD, 1690, 1594 2&4WD, 3220 2&4WD, 3230 2&4WD, 4210, 4210XL 4WD, 4230, 4230XL 4WD, 4240, 4210 4WD, 4230 4WD, 4240 4WD, 5120 2&4WD, 5130 2&4WD, 5140 2&4WD, 5220 2&4WD, 5230 2&4WD, 5240 2&4WD, 5250.
