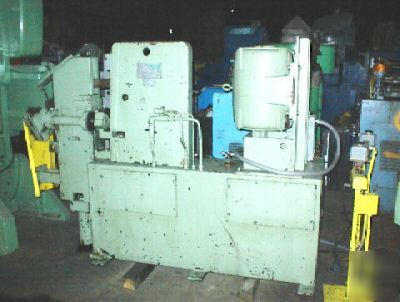

1-1/4" pines no. 3T pipe, tube & bar bender, 1967
1-1/4" PINES No. 3T Pipe, Tube & Bar Bender, 1985 [#769]
Bending Capacity: 1-1/4" O.D. x .065 Wall (Steel Tubing),
Tube Size Range: Up to 1-1/4" O.D.,
Centerline Radius Range (Permitting Bending to Max. Angle): 3-1/2" max.,
2" to 3" Minimum Work Diameter,
Maximum Bend Angle: 140 Degrees with Normal Tooling, 165 Degrees with Special Tooling,
Production Rate: Up to 1500 Bends/Hour,
Cycle Time (at 90 Degree Bend): 1.5 Seconds,
Welded Steel Bed with Integral 50 Gallon Oil Reservoir in Base,
Heavy Cast Steel C-Frame Type Construction,
Bijur Automatic Lubrication System,
20 H.P. AC Main (Pump) Drive Motor,
Pedestal Mounted Push Button Operation,
Non-Ferrous Tubing 25,000 PSI: 1-1/4" x .083",
Mild Steel Tubing Y.P. to 40,000 PSI: 1-1/4" x .065",
Stainless Tubing Y.P. to 60,000 PSI: 1-1/4" x .049",
Square Tubing (Mild Steel): 1" x .065",
Square Bar (Mild Steel): 9/16",
Dimensions, Approx. 64" L-R x 87" F-B x 60" H,
