Hioki 3151 earth hitester

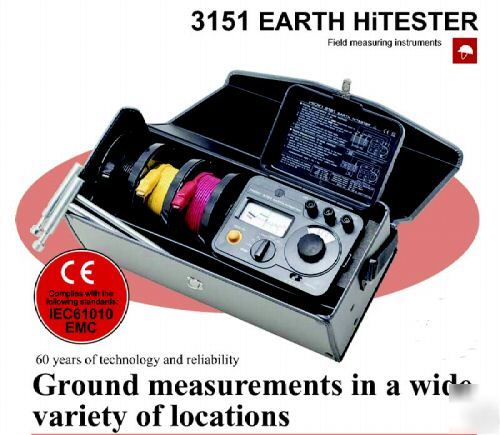

Ground Measurements in a Wide Variety of Locations

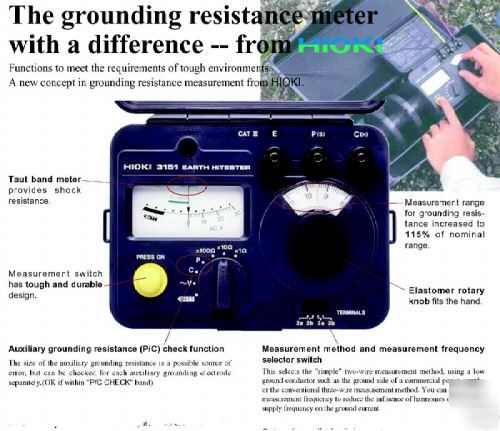

The grounding resistance meter with a difference.
Ø Functions to meet requirements of tough environments.
Ø 60 years of technology and reliability
(effective range in parentheses)
* Influence of auxillary grounding resistance: ±5% for fluctuation of 0 to 5 kW.
* Influence of grounding voltage: ±2% for fluctuation of 0 to 5 V; ±5% for fluctuation of 0 to 10 V (50/60 Hz); ±5% for fluctuation of 0 to 3 V. (DC, 16 2/3, 400 Hz)
* Influence of power supply voltage: within specification for fluctuation of 6 to 10 VDC.
* Operating method: AC phase difference.
* Open-circuit terminal voltage: 50 VAC max.
* Measurement current: 15 mA AC max. (3 mA AC max. using two-wire method)
* Measurement frequency: 575 Hz or 600 Hz selectable
* Applicable standards: Ground measurement: EN61557-5; Safety: EN61010-1/EN61010-2-031; EMC: EN55011/EN50082-1; Environment Protection: EN60529-1991 “IP40â€
* Overvoltage protection: 250 VAC 1 minute (between E-P (S), E-C (H) terminals)
* Power supply: R6P (AA) manganese battery X6 or LOR6(AA) alkaline battery X6
* Operating time: Minimum 500 operations (using R6P); Minimum 1400 operations (using LR6)(30 second measurement / 30 seconds off)
* Approximate dimensions and weight: 164(W) x 119 (H) X 88 (D); 800g (main unit only)
* Supplied accessories: 9214 Auxiliary Earthing Rods (2), 9215 Measuring Cable [one each: black 5m, yellow 10m, red 20m, 9216 Cable Winder (3)] Carrying Case
