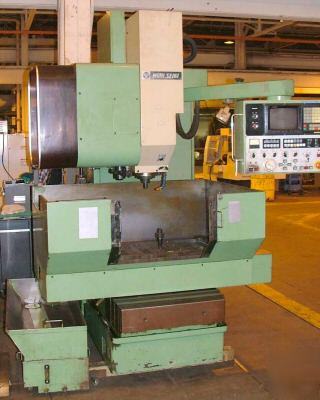

Mori seiki mv junior cnc vertical machining center
TABLE DIMENSIONS...................34.5" X 16"
TABLE TOP TO FLOOR.................27.5"
TRAVELS...(X) AXIS.................22"
RAPID FEEDRATE (X/Y)...............590 IPM
CUTTING FEEDRATE (X/Y/Z)...........0.04 - 196 IPM
MAXIMUM LOAD ON TABLE..............660 LBS.
SPINDLE NOSE TO TABLE TOP..........5.9" MIN.
SPINDLE CENTER TO COLUMN FACE......18.7" MIN.
SPINDLE MOTOR......................7.5/5 HP
SPINDLE SPEEDS.....................150-6,000 RPM
SPINDLE TAPER......................40
AUTOMATIC TOOL CHANGER.............20 TOOLS
MAX. TOOL DIAMETER.................3.15"
MAX. TOOL LENGTH...................10"
MAX. TOOL WEIGHT...................17.6 LBS.
FLOOR SPACE........................88.6" X 85.8"
MACHINE HEIGHT.....................97.64"
MACHINE WEIGHT.....................7,700 LBS.
