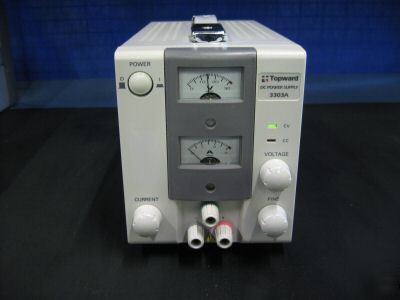

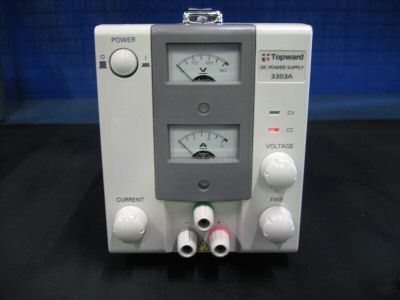

Topward 3303A power supply
** UNIT INCLUDES 10 DAY ROR AND 90 DAY WARRANTY **
The 3303A Analog Power Supply delivers reliable performance at a very reasonable price. Included are such features as constant voltage and constant current modes, short circuit protection, front-panel outputs, operating mode indicators and a simple to read analog meter for easy setup and monitoring of outputs. Ripple and noise are less than 0.5 mV rms or 4 mV p-p in the constant voltage mode and 0.5 mA rms or 4 mA p-p in the constant current mode. Line regulation is also good: 0.02% + 2 mV (CV), 0.02% + 250 µA (CC). Load regulation: 0.02% + 2 mV (CV), 0.02% + 500 µA (CC). Output impedance: 5 m Ohm + 2 µH. Programming speed: UP NL 400 mS FL600 mS; (0.5% to 9.5%) Down NL 2.5 d FL200 mS. Includes a manufacturer's 1-year warranty. Operates from 115/230 V (±10%), 50/60 Hz input power. " Single Output DC " Voltage: 0 to 30 V " Current: 0 to 3 A "
FOR FURTHER INFORMATION PLEASE EMAIL SALES@ITESTX.COM!!
