Keithley 7020-d digital i/o interface card 7020D

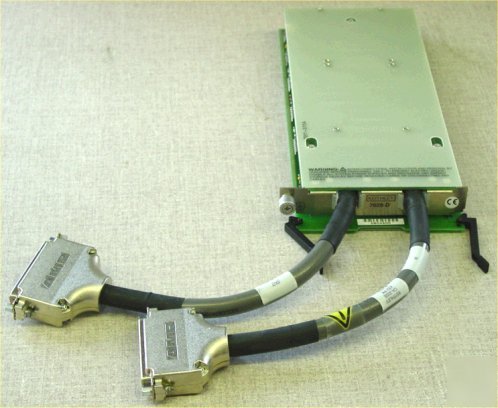

Keithley 7020-D Digital I/O Interface Card 7020D
Keithley 7020-D Digital I/O Interface Card 7020D
The Model 7020 and 7020-D Digital I/O Interface Cards feature 40 independent digital inputs and 40 independent outputs to provide high-density, cost-effective digital monitoring and control. Versatile design and configuration I/O options provide compatibility with a wide range of signals and loads. Internal pull-up resistors on the inputs provide level shifting so microswitches can be monitored directly. Each input is protected against overvoltage, so logic levels up to 42V peak can be monitored. Digital outputs can drive relatively high-current devices, including solenoids, relays, and small motors, without the need for additional control circuitry. Outputs can be configured to use the 5.3Vdc internal source, or an external source of up to 25Vdc to drive higher power devices. Each output channel is protected against spikes for reliable, noise-free control of inductive loads. The 7020 includes a 96-pin mass terminated connector. The 7020-D has two heavy-duty 50-pin D-sub connectors for industrial/production applications where repeated connects/disconnects are required.
* 40 independent inputs and 40 independent outputs handle complex applications.
* Inputs protected to 42V for versatile signal reading capability.
* Selectable internal (5.3V) or external power for control of a wide variety of loads.
* High capacity digital outputs with spike protection sink up to 65mA for direct control of relays.
* Compatible with Model 7001/7002 Switch Mainframes.
* Mass terminated connection for fast setup.
ANOTHER GREAT DEAL FROM TECHRECOVERY!
* Test equipment with pre-calibration has a 100 day guarantee from defect and 10 day right of return.
* Please allow an extra 7 - 10 business days for delivery for items that require crating and freight delivery.
* At TechRecovery, your complete satisfaction is our goal. If you have any questions, issues or suggestions on how we san serve you better, we’d like to hear from you., please call us at (***)-634-1530 to talk to a team member who can assist you.
