Moog high performance 12 volt brushless dc motor BN23
Moog Brushless 12 VDC High Performance Motor
Moog BN23 Series High performance motor Moog BN23 Series High performance motor Moog BN23 Series High performance motor Moog BN23 Series High performance motor Moog BN23 Series High performance motor
Moog BN23 Series High performance motorclick on thumbnail for larger photo

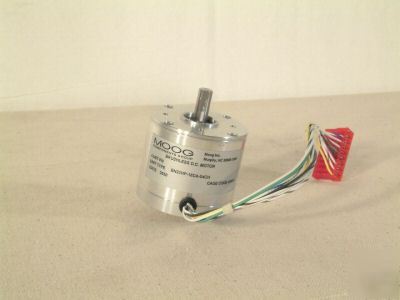

This is a Moog Silencer Sieres BN23HP Motor, Brushless 12 VDC Motor
The HP in the part number means High Performance, which equates to almost 2 times the torque of the standard motor.
Utilizing high energy sintered neodymium magnets, the BN23HP brushless motor offers almost 2 times the torque capability of the standard BN23. When maximum performance and minimum size are important, the BN23HP offers an effective solution.
The Motors are New, Unused and we have a nice supply in stock, so you are not limited to the 20 pieces listed.
Click here for a complete drawing of the motor, including wiring information.
Performance Specs at 25 degrees C.
* Terminal Voltage (V) 12 VDC
* Peak Torque (Tp) 334 oz-in. Max.
* Continuos Stall Torque (Tc) 44 oz-in Max.
* No Load Speed (Snl) 3400 RPM Nominal
* Torque Sensitivity (Kt) 4.75 oz-in/Amps +/- 10%
* BEMF Constant (Ke) 3.51 Volts/Krpm +/- 10%
* Terminal Resistance (Rm) 0.17 Ohms +/- 12%
* Terminal Inductance (Lm) 0.146 mH +/- 30%
* Motor Constant (Km) 12.8 oz-in/?"Watts Nomiinal
* Rotor Inertia (Jm) 0.99 (oz-in-sec2)X103 Nominal
* Body and End Cap material is Aluminum
* Shaft is Stainless Steel with a flat
* Please see the print for mare detailed information on the motor
Applications include but are not limited to
In a few Words, lots of applications.
The Motors are New, Unused and we have a nice supply in stock.
