Wiremold walker 800LCK recessed electrical floor box
Offered for your consideration is one (1) Walker model 800LCK Recessed Electrical Floor Boxes. This is new and has never been used. This is inventory from a defunct contractor and were installed.
These Walker products are a division of the Wiremold Corporation, well reknowned makers of many types of electrical equipment. This is a recessed (hidden) box designed to provide code compliant flush mounting of electrical devices in the floor. These are specifically intended for rough in of new poured concrete floors but can be cut into existing concrete and wooden floors as well.
This is a genuine Walker product. The boxes' actual measurements deviate slightly from those listed on the Walker website for this item for reasons unknown. The deviation does not effect the cover or finish plate selection. These boxes take the same finish accessories regardless of size deviation.
This listing is for one (1) Walker 800LCK recessed electrical floor box. A total of twelve (12) are available through this listing.
Each box is engraved Walker and 23.6 cu identical to the Walker specs provided online at the links below. Listed measurements of this box are 3+1/2 inch side to side, square, and 2 inches deep inside measurement.

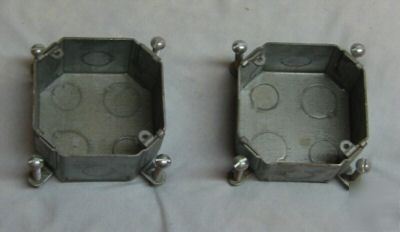

The boxes are octagnal in shape (see photo). Electrical device/trim ring mounting tapped 8-32 thread, spaced 3+1/2 inches apart.
Each box has two(2) 1/2 inch and two(2) 3/4 inch conduit knockouts in bottom wall of box. Four (4) conduit knockouts are located on the walls of the box, one (1) on each of the four (4) sides. Two (2) opposing are 1/2 inch, two (2) opposing are 3/4 inch knockouts.
More information on this genuine Walker by Wiremold product can be found in PDF format online at: /shared_content/pdf/ed769.pdf
Installation instructions for this item can be found at: /www/commercial/products/inst_ins/WALKER/1000273.pdf
Again, this listing is for one (1) Walker 800LCK Recessed Electrical Floor Back Box. A total of twelve (12) are available through this listing.
