(2)eta circuit breakers/switches,10A,5A single,10A pair

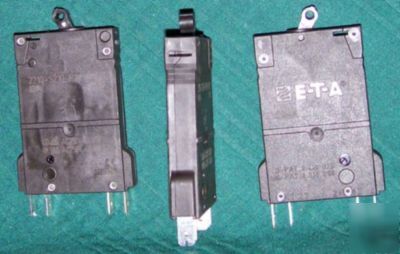

(2) NEW ETA CIRCUIT BREAKERS / SWITCHES
10A, 5A SINGLE, 10A DOUBLE, 250VDC / 65VDC
Two new ETA circuit breakers. These very useful and versatile circuit breakers can also be used as circuit switch / circuit breaker combinations to add AC high voltage AC switching and DC switching with circuit breaker protections. The quantities in stock are:
5 Amp circuit breakers, single: 8 QTY
10 Amp circuit breakers, single: 8 QTY
10 Amp circuit breakers, double: 8 QTY
For this sale, you pick any two singles (e.g. two 5A, two 10A, or one 5A and one 10A), or one 10A double (within the quantities listed above). Be sure to email me your pick.
The singles each have 4 contacts. When the circuit breaker is in the "0" position, one pair is shorted and the other pair is open. When the circuit breaker is in the "1" position, the shorted pair is opened and the opened pair is shorted. The contact pairs are not connected to each other. The double consists of two conjoined single 10A circuit breakers yoked and operating from the same toggle; one of these single circuit breakers of the pair has 4 contacts as described above, and one has 2 contacts. The second set of contacts are great because they can be wired to a lamp and/or alarm to alert that the circuit breakers have shut off power.
All are rated 250 VAC and 65 VDC, 5Amp or 10Amp. They are 3.5" tall, 2" wide, and 1/2" thick (single) / 1" thick (double).
NOTE: Later availability not guaranteed. LIMITED QUANTITY.
