> 1X power relay 12VDC 5AMPS pcb mount, nais / panasonic

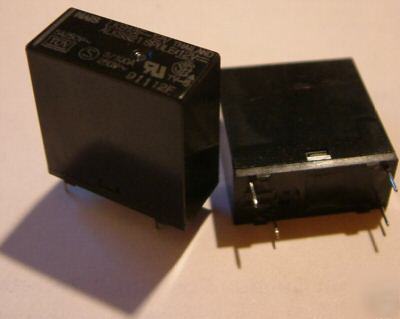

1X power relay 12VDC 5AMPS pcb mount, nais / panasonic
datasheet: http://jc-hp.tripod.com/data/LKS1AF-12V.pdf
The power-saving relay is highly sensitive at the nominal operating power of 250 mW (530 mW power consumption on LK relays).
2. High insulation resistance between contact and coil
1) Creepage distance and clearances between contact and coil: Min. 6 mm .236 inch (In compliance with IEC65)
2) Surge withstand voltage between contact and coil: 10,000 V or more
3. High noise immunity realized by the card separation structure between contact and coil
4. Popular terminal pitch in AV equipment field
Base area: Width 11 × Length 24 mm Width .433 × Length .945 inch
