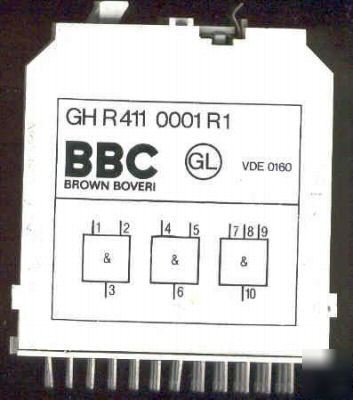

Bbc boveri brown logic card gh r 411 0001 R1 062 035 65
Made by BBC Brown Boveri. It was sold under the Sigma-Tronic B system for Industrial controls.
This is a used, and tested card in good condition.
With a 3 month RTB (Return To Base) Warranty.
The AND gate contains 3 independent AND functions, two of which have 2 inputs and one with 3 inputs.
Tech Data: Current consumption: 0-signal at output 5mA, 1-signal at output 27mA
The operating voltage for the sigma-Tronic system is 24v d.c. (with a tolerance of 30% i.e. 16.8v to 31.2v a ripple up to a peak amplitude of 4v is permissible)
Other part numbers used for this part are:
GH R411 GHR411 GH-R-411 GH-R 411 GH R-411 GHR 411 and 062 035 65
These modules are also ideal for small DIY logic projects (such as model railway control or hydraulic control) as they do not require a programmer or software. Also the logic circuit can be added to as required.
I have only listed the common logic blocks but if you need a particular BBC card that is not in my shop please e-mail for availability and price.
