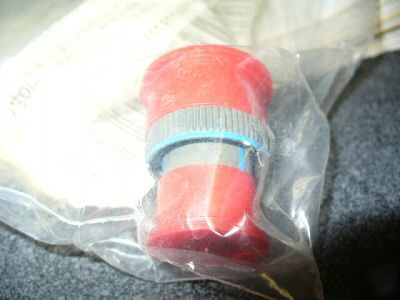

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.420 INCHES MAXIMUM
OVERALL DIAMETER - 1.043 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 0.750 INCHES
NOMINAL THREAD LENGTH - 0.290 INCHES
SHELL MATERIAL - ALUMINUM ALLOY 6061
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-A-367 T-6 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG - 270.0
CONTACT POSITION ARRANGEMENT STYLE - ALAC 12-10 SINGLE MATING END
INCLUDED CONTACT QUANTITY - 10 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 TY 1,CL 1,GRADE C MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290 GRADE E FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
SPECIAL FEATURES - IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL. STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-184-7189,P/N M85049/52-1-12W FOR THE STRAIGHT STYLE,OR NSN 5935-01-181-6652,P/N M85049/51-1-12W FOR THE RIGHT ANGLE STYLE
TEST DATA DOCUMENT - 81349-MIL-C-26482 SPECIFICATION
SPECIFICATION/STANDARD DATA - 96906-MS3475 GOVERNMENT STANDARD
III PRECIOUS MATERIAL AND WEIGHT - 0.010 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-26482
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3475W12-10SY
