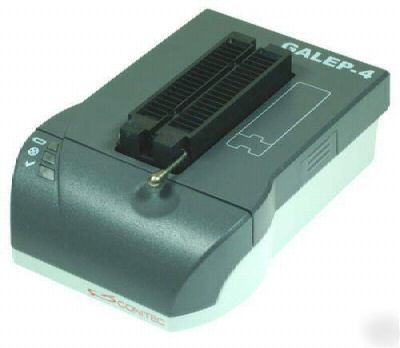

Professional universal eprom programmer galep-4
By using a highly integrated FPGA, GALEP's internal logic is made freely programmable and is automatically optimized for the selected component.
* Battery powered operationThe Galep-4 can be powered from the power adapter or from six standard AAA batteries. The batteries are optional and not included in the Galep-4 package.OK
* Security featuresPrior to each function, the GALEP 4 checks the electric selected device's electric consumption, as well as the correct positioning of the selected component. This reduces the risk of accidentally harming the component or the programmer to a minimum.OK
* Actually supported chips>10000
* Complete chip support listGalep-4 chip list
Screenshot Galep-4 Software...The Galep-4 software features a comprehensive set of basic functions such as read, program, compare and delete, along with easy-to-use custom configuration options for any special functions required by the selected component.
The editor allows a multitude of functions for editing component contents which can be saved and loaded in binary, intel-hex, motorola-s or jedec file format.
* Socket40 Pin "High Quality" lever socket from Aries
* Low voltage support down to 1,3V
* Dimensions8 x 11.5 x 3.3 cm
* Weight without accessories / packaging171 gram (0.38 lb)
* Weight with accessories / packaging952 gram (2.10 lbs)
* File formats Binary, Intel Hex, Motorola S-Records, TI-Tagged Hex and Jedec
* File format auto detection -
* OffsetData and chip offsets
* SplittingComplete 16 and 32 Bit splitting functions
* Serial number generatorVery comfortable serial number generator with support for external serial number files.
* Checksum calculation Checksum
* Hex-EditorSimple with some editing functions
* Software remote controlThe Galep software can be remote controlled by other software with command line parameters and script files
* Software updates~2 weekly, free via download
* Supported operation systemsWindows 98SE, ME, 2000, XP, 2003, Vista
The delivery includes the programmer, parallel port cable, power adapter, software and manual on cd.
» Nearly all products in stock
» Via DHL Express 24-48 hours Europe, 2-3 business days USA
