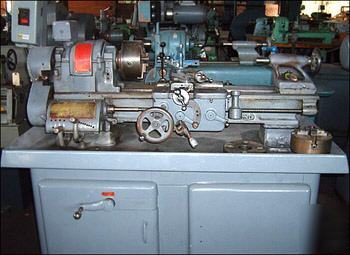

South bend precision lathe "heavy ten" 10X20" capacity
Swing over bed and saddle wings 10-1/8 inches
Swing over cross slide 5-7/8 inches
Swing over cross slide w/o chip guard 6-3/4 inches
spindle speeds (12) 55-1400 rpm
Capacity through spindle 1-3/8 "
Maximum collet capacity 1-1/16"
Size of Morse taper center No. 2
Number of threads and feeds 70
Range of threads per inch 4 - 480
Longitudinal feeds per revolution .0007"- .0836"
Cross feed per spindle revolution .0003"- .0303â€
Lead screw, diameter and threads ¾ "
Angular hand feed of top slide 2 "
Set-over stop for taper turning 11/16 "
dIMENSIONS 24†W x 50†L x 57†H
* Hardened and Ground U.S. Cast Iron Bed Three V-Way and One Flat-Way Design
* 6" 3-JAW CHUCK 8" 4-JAW CHUCK
* Thread Indicator Dial 5-5/8" Diameter Face Place Single Round Tool Post WITH HOLDERS 60° Centers and Spindle Sleeve MAGNETIC STARTER REVERSING SWITCH
