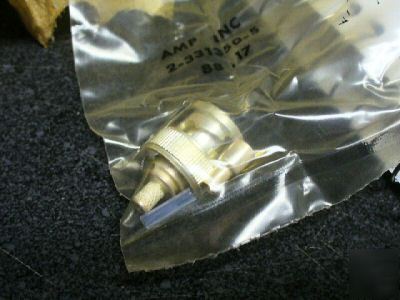

Connector,plug,electrical
BODY STYLE - 5D STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.125 INCHES NOMINAL
OVERALL DIAMETER - 0.572 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
CONNECTOR CABLE STRAIN RELIEF METHOD - CRIMP TYPE
SHELL SURFACE TREATMENT - SILVER
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE
CONTACT POSITION ARRANGEMENT STYLE - ABBJ BNC SINGLE MATING END
INSERT MATERIAL - PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-P-19468 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM FREQUENCY RATING - 4000.0 MEGAHERTZ SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION - QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-S-365 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - HEAT RESISTANT AND COLD RESISTANT AND VIBRATION PROOF AND SHOCK PROOF AND MOISTURE RESISTANT AND SALT WATER RESISTANT
III PRECIOUS MATERIAL - GOLD AND SILVER
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD AND CONTACT AND SHELL SURFACES SILVER
MFR SOURCE CONTROLLING REFERENCE - 385944-1
