Fujikura fsm-40SB fusion splicer
Test and Measurement Global Exchange
FSM-40S KIT Fujikura Fusion Splicer 4 Month Warranty!
* Description: FSM-40S Splicer Kits The FSM-40S is field friendly one of the fastest field splicers available - 15 seconds!!!. Splices singlemode, multimode, non-zero dispersion shifted, dispersion shifted, cutoff-shifted, and erbium-doped fiber. Dual CCD camera optical system allows viewing of splice on both vertical and horizontal axes simultaneously. The clear winner for smallest size, weight and field abuse resistance. The FSM-40S is highly flexibility for various splicing tasks with user-selectable monitor positioning of 5" LCD monitor . Automatic core to core, low-loss splicing regardless of fiber quality or age. Multiple pre-programmed modes for specialized splicing.

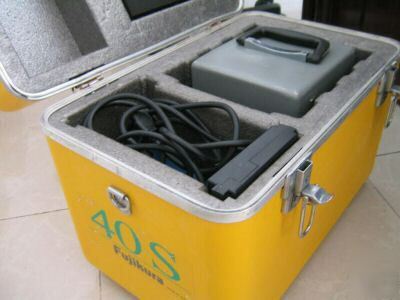

This unit was taken as a trade-in and is in fine working condition. We were going to send it to the factory for refurbishing, new case, etc....then price it for $11,000. But decided to let the bargain hunters have first look. The unit operates as well as any unit we have seen, but the transit case is missing ($595) and a few accessories which we can add or you can purchase on your own. This 40S is a solid unit, so we are giving a 4 month warranty and a 5 day Right of Refusal if you don't like it (for any reason)....and we are pricing it at $7995. This is a bargain for the guy on a budget, without compromise to quality of work.
Splice loss estimating function
By core axial offset, core deformation and MFD mismatch
SM (Single-mode), MM (Multi-mode), DS (Dispersion shifted), CS (Cut-off shifted), NZ-DS (Non-Zero Dispersion shifted) and ED (Er doped) fibers
Outer coating diameter 250um : 8 to 16mm
Typical 0.02dB with SM fiber, Typical 0.01dB with MM fiber and Typical 0.04dB with DS fiber
40 user programmable modes and 60 fixed database modes
Splice loss estimating function
By core axial offset, core deformation and MFD mismatch
Auto attenuation mode: 0.1dB to 15dB (0.1dB step) Manual attenuation mode: 0.8um to 20.0um (0.1um step)
The last 2000 splice results data including estimated loss, selected splice mode, date / time, arc condition and comment
132 ( X / Y simultaneous view ) or 264 ( high magnification view )
5" TFT color LCD monitor with anti-reflection coating
Operational environmental condition
0 to 3,500m above sea level, 0 to 95%RH and - 10 to 5 0 degree C with arc power compensating function
Approx. 2N (standard) / Approx. 4.4N ( option )
Built-in tube heater with 10 programmable heating modes
Applicable protection sleeve length
AC adapter ADC-07 : 100 to 240VAC Battery pack BTR-05 : 12VDC NiMH DC adapter DCA-01 : 10.5 to 14VDC for external battery
4.4kg(4.9kg with AC adapter ADC-07)
* Condition: Very Good condition and certified performance.

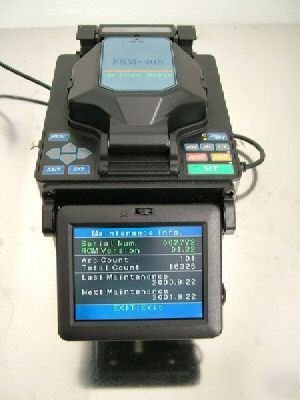

* Picture is from stock, but we will send actual pictures if you are interested
* We sell additional Test Equipment and Networking Products.
* On parle français. Se habla español. ((***)-820-8642)
* CGBP, Certified Global Business Professional
* 17 years of exporting experience
Please email questions to ****@tamge.com
We carry a full range of used test equipment from top manufacturers, plus new products from AFL/ Fujikura and Noyes. Visit Test and Measurement Global Exchange at the TAMGE web site for the full line of weekly specials.
* 4-Month Warranty for End Users
* A Return Authorization (RA) number is required for all product returns.
Corporate Purchase Orders Accepted.
