Honeywell RP920A pneumatic reciever controller

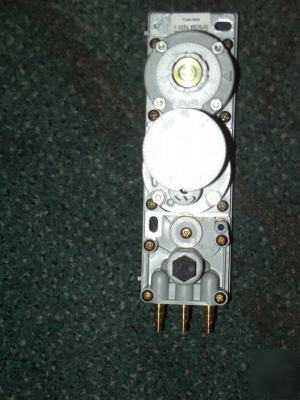

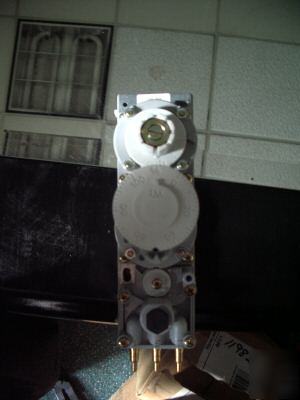

Honeywell Pneumatic receiver controller model RP920A-1025 New in box.
Description Pneumatic Controller, Remote sensor, Action: Direct/reverse
Application Proportional pneumatic controller
Number of Sensor Inputs single
Airflow Usage 0.07 scfm (33.0 mL/s) with 1 psi (7kPa) pressure drop at 18 psi (124 kPa) main air supply
Capacity at 18 psi (124 kPa) MLP and 8.5 psi (59 kPa) VLP (does not include sensor usage) 0.021 scfm (10 mL/s)
Maximum Operating Pressure (psi) 30 psi
Maximum Operating Pressure (kPa) 205 kPa
Maximum Operating Temperature (F) 130 F
Maximum Operating Temperature (C) 54 C
Remote Control Point Adjustment Yes
Dimensions (in.) 5 7/8 in. high x 3 13/16 in. wide x 3 1/4 in. without cover x 3 3/8 in. deep with cover
Dimensions (mm) 148 mm high x 96 mm wide x 83 mm without cover x 86 mm deep with cover
Connections Air: Combination 5/32 in. by 1/4 in. barb optional connections to Ports 4,6,7 or 8 use 5/32 in. push-on barb 14003755-001 only
Operating Humidity Range (% RH) 5 to 95% RH
Input Signal (psi) 3 to 15 psi
Input Signal (kPa) 21 to 103 kPa
Output Pressure Range (psi) 3 to 13 psi, output signal maximum is Mainline Pressure minus 1/2 psi
Output Pressure Range (kPa) 21 to 90 psi, output signal maximum is Mainline Pressure minus 7 kPa
Nominal High End (kPa) 205 kPa
Pressure Range (psi) 17 to 30 psi
Pressure Range (kPa) 117 to 207 kPa
Temperature Range (F) 40 F to 130 F
Temperature Range (C) 5 C to 55 C
