> Keyence high performance monitor machine vision cv-751P

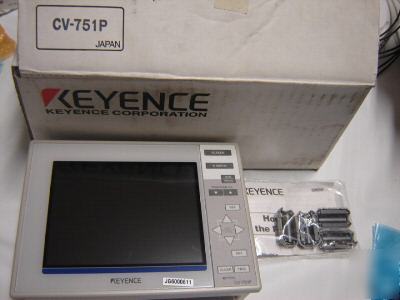

Keyence high performance monitor machine vision cv-751P
Keyence High Performance Built-in-Monitor Machine Vision System
30 c/s (Varies depending on setting)
Color binary processing by color extraction or color shade processing
Color can be specified individually for each window
16 programs (8 programs when two cameras are used)
(Programs are externally selectable)
16 screens (1 screen/program or 2 screens/program)
8 max./program, Window shape: Circle/square/free square
4/program, Window shape: Square
4/program, Window shape: Square
8/program, Window shape: Square
8/program, Window shape: Square
8/program, Window shape: Square
8/program, Window shape : Square/circle
8/program, Window shape: Square/circle/ring/arc
8/program, Window shape: Square/circle
X-/Y-axis direction, Angle (±45°)
1 illumination adjustment window/program (two when two cameras are connected)
Pre-processing (Filter function)
Expand, Shrink, Median, Average, Edge enhancement, Edge detection, Shading, Lightness-up, Saturation-up, Invert
Continuous processing of 4 programs max. (Up to 32 inspections [4 programs x 8 windows] can be continuously processed)
Stores parameters of initial setting
Data input (x4), 16 programs selectable (Non-voltage input)
Detection is continued without an external trigger when program No. is changed while CONT input is on. (Non-voltage input)
Screen is registered by a trigger signal while REC input is on.
Display/output window selection
Data input (x3), 8 windows selectable (Non-voltage input)
Cold cathode fluorescent tube (life: 40,000 hrs)
1 ch, Numerical value output and control input/output (Baud rate: 38,400 bps max. selectable)
PNP open-collector: 9, 50 mA max. (30 V max.)
Binary 13 bits, 10 mA max. (30 V max.)
0 to 4 V output, Output impedance: 100 ohm
0 to +40 °C (32 to 104°F), No freezing
Condition: new in box, new surplus
