Vme chassis 20 slot with qualidyne 600 w power supply
Turbo Logo 2 EMAILS answered M-F 8-5 MST
Freight Delivery: In Most cases, we will palletize for free. Any crating would be subcontracted. We have forklift loading. We also have local pick up.

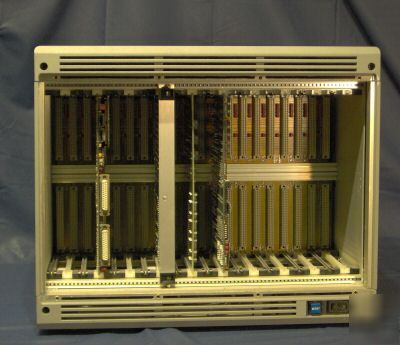

MODEL GV 8020 D160, THE FRONT AND BACK COVERS ARE MISSING FROM THIS CABINET AND ALSO THE MANUFACTURERS NAME. IT HAS CAST ALUMINUM FRONT AND REAR MAIN PIECES, THE TOP,BOTTOM AND SIDES ARE ALL EXTRUDED ALUMINUM. THERE ARE NO HOLES AND NO SCREWS SHOWING ON EITHER SIDE OR THE TOP AND ONLY 4 HOLES IN THE BOTTOM WHERE THE RUBBER FEET SCREW IN.
INSIDE THERE IS A MAIN BOARD THAT GOES FROM THE TOP DOWN TO THE INNER BOTTOM, ABOUT 12" AND ALL THE WAY ACROSS 17". THE CABINET HAS A FLOOR SECTION 1 3/4 THICK WHERE THE AC WIRING TO THE POWER SUPPLY RUNS. IT HAS 2 4" MUFFIN FANS WHICH ARE DIRECTLY UNDER THE BOARD SLOTS AND TAKE AIR FROM SLOTS IN THE FRONT AND BACK CASTINGS. THERE IS A FUSEHOLDER AND A DIN POWER INPUT CONNECTOR MOUNTED ON THE BACK AND A POWER ON/OFF SWITCH AND RESET BUTTON ON THE FRONT.

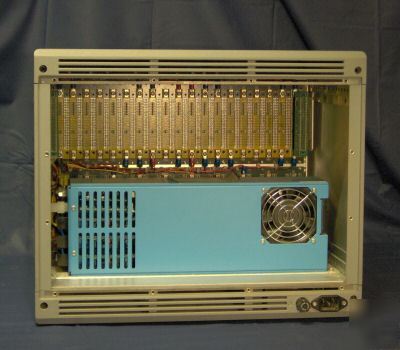

THE POWER SUPPLY, VISIBLE IN THE PICTURE IS A QUALIDYNE MODEL 23011EFG DATE 8823 . IT HAS 120/240, 50/60 HZ INPUTS AND ONE 5 VOLT 80 AMP AND 3 12 VOLT 8 AMP OUTPUTS. WHEN POWERED UP THE FANS RUN AND THE RESET BUTTON LIGHTS UP. THERE ARE 4 BOARDS THAT COME WITH IT BUT THEY ARE MADE IN 1988 AND NOT WORTH DESCRIBING. shelf K
