97V 18 hp dc electric vehicle motor
97V 18 HP DC ELECTRIC VEHICLE MOTOR

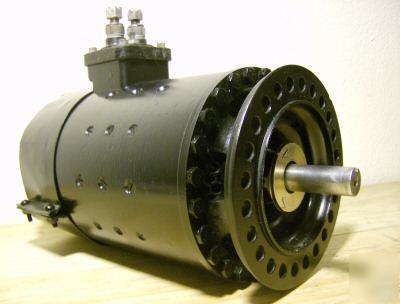

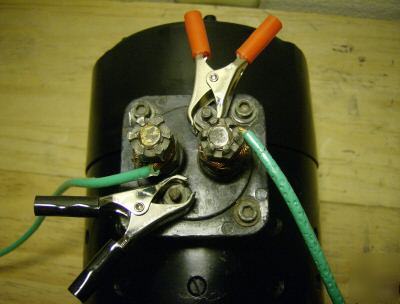

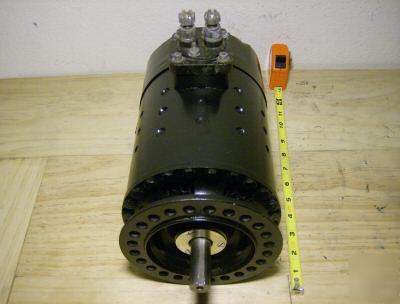

If you need a good power source for an electric vehicle project, Then Here is the Electric Motor for you. This electric motor can produce 18 HP continuously at 97 Volts DC and over 40 HP for short intermittent burst of power at that voltage. It is a used 18 HP 97V shunt wound, continuous duty reversible DC Motor. This Motor has been tested. This motor has some scuff and rust due to storage. It is in excellent working condition and its appearance is as shown in the listing. The pictures with cables attached illustrate how to connect the motor and have it reverse. The red and black alligator clips is where the field is powered with 24 volts DC, with best performance provided with the field being given 24 volts. The voltage for the fields should not exceed 24 volts. The green wire power cables illustrate connection to power the motor and can be given up to 97 volts DC. You can reverse this motor by simply changing the polarity of the power cables (green cables) this means switching which post each cable is connected to. The field (alligator clips) should be connected separately (separate power source) from the power cable (green cable). This is a high quality motor starter generator for military aircraft. It function was both as a generator and an aircraft engine starter motor. This Electric motor can be used for Forklifts, Electric Vehicles, Hydraulic power packs, pumps ECT. The shaft of this motor measures 3/4†in diameter and 1.75†long. This motor and all its parts were specifically designed to meet and exceed the tough standards of the military. The power cable must be disconnected or turned off before the fields are turned off.
· 18 HP at 97 Volts DC ELECTRIC MOTOR
· Shaft 3/4†Diam. X 1 3/4" keyed
