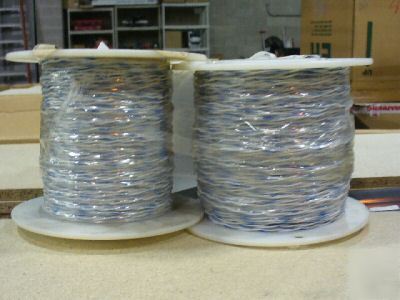

Cable,special purpose,electrical
CONDUCTOR FORM - STRANDED ALL CONDUCTORS
MATERIAL - COPPER CORE CONDUCTOR ALL CONDUCTORS, PLASTIC ETHYLENE-TETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS
MATERIAL DOCUMENT AND CLASSIFICATION - ASTM B33 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS
SURFACE TREATMENT - TIN CORE CONDUCTOR ALL CONDUCTORS
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - ASTM B33 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS
ROUND CONDUCTOR SIZE - 22 AWG ALL CONDUCTORS
STRAND QUANTITY PER CONDUCTOR - 19 ALL CONDUCTORS
STRAND AWG SIZE PER CONDUCTOR - 34 ALL CONDUCTORS
CONDUCTOR ARRANGEMENT AND QUANTITY - 2 TWISTED TOGETHER W/NO OUTER COVERING
COLOR - WHITE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS
TRACER COLOR - BLUE SINGLE TRACER SECOND CONDUCTOR
VOLTAGE RATING - 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS
CROSS-SECTIONAL SHAPE STYLE - 2 TWIST
CROSS-SECTIONAL HEIGHT - 0.052 INCHES NOMINAL
CROSS-SECTIONAL WIDTH - 0.102 INCHES NOMINAL
TEMP RATING - 150.0 DEG CELSIUS
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-27500
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M27500-22TE2U00
