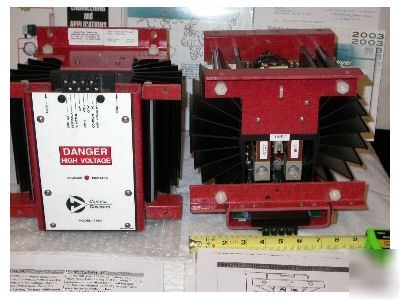

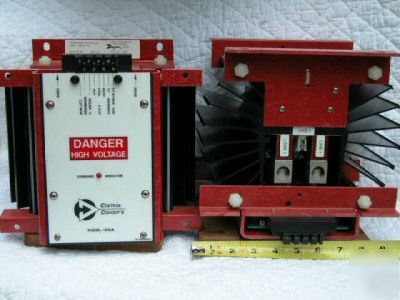

New love dwyer 100 a scr, phase-angle, 1PHASE
LAST CHANCE OFFERING AT THIS RIDICULOUSLY LOW PRICE! HAVE 13 PIECES LEFT FOR INDUSTRIAL PROCESS APPLICATIONS. SOLID 100% SELLER REPUTATION. LESS THAN SIX DAYS LEFT!
New Phase-Angle-Fired SCR's, Love manufactured for Dwyer, 100 Amp Single-Phase SCR, Model #1028A, 208 Volt AC control: For Excellent Control of Resistive or Transformer-Coupled Loads.
Phase angle firing is best suited to Resistive/Inductive loads and special types of loads such as Infrared or quartz heaters, transformer coupled, or tungsten loads. The wave form for each half cycle is automatically adjusted to allow only the desired power to the load.

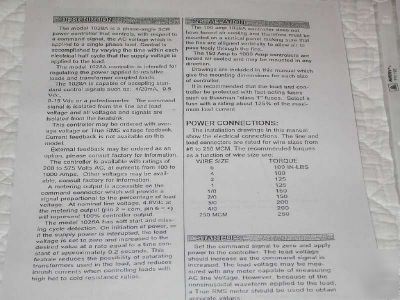

Control Signal Inputs are: 4-20 mA, 0-5/15 Vdc, or Manual Setpot. Electrically isolated Command Signal from Heat Sink & Line & Load. Soft-Start feature, Full Factory set of schematics,& manual included.
Http:// /output/power/power_frame.html and click on Specifications, or veiw pictures included. Email for more detailed 298 kb images.
1 module unit total, @ 100Amps each leg, Single-Phase, Single-Leg Control, for 208 line voltage power.
Control Mode: Single-phase; Phase-angle; RMS value of the voltage applied to the load
Command Signal: 4-20mA or 0-5/15Vdc, across 200 ohms
Control Range: 0 to 97% of line voltage
Linearity: RMS load voltage is linear within 2% of span of the command signal.
Zero and Span Adjustment: User adjustable over range of ±20% of span.
Isolation: Dielectric strength input/line & load voltage/heat sink 4000V(rms). Insulation resistance input/line & load voltage/heat sink 1010 ohms. Maximum capacitance input to output 8pf.
Cooling: Convection, recommend user supplied fan for enclosures operating in excess of 80 F.
Mounting: Must be mounted on vertical surface with fins vertical. Units may be mounted adjacent to each other. Heat sink is electrically isolated.
Line voltage: 208 Vac +10%,-20% 50/60 Hertz
Diagnostic Indicator: The intensity of an LED varies as a function of the command signal. Feature provides a quick and safe means to check controller operation.
Physical: Weight: 100Amp: 15.8 Lbs.

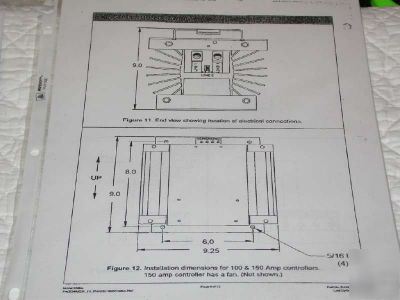

Dimensions: 9"D X 9"H X 9.25"W
Environment: Operating: 0 to 55oC (32 to 131oF)
· Storage: -40 to 80oC (-40 to 176oF)
· Humidity: 0 to 95% Non-condensing
dv/dt & Transient Voltage: 200 volts/µsec minimum. A dv/dt snubber and a metal oxide varistor (MOV) are provided to protect against high frequency transients (dv/dt) and voltage spikes.
Dissipation: 1.5 watt per amp of controlled current.
