New williams sound ppa T35 personal pa / fm transmitter

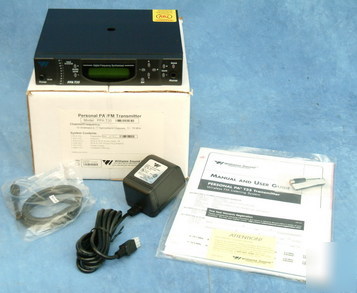

NEW Williams Sound PPA T35 Personal PA / FM Transmitter
Churches Schools Auditoriums Conference Rooms Theaters
The T35 transmitter features a sleek LED digital display, powerful microprocessor and easy-to-use push-button controls. Setting up the T35 is a snap, even for the novice audio user. You can quickly choose between Voice, Music or Hearing Assistance in the Application Preset menu. The T35 configures itself to the appropriate setting taking the guesswork out of complicated audio installation. Operating up to 1000 feet, the T35 is ideal for auditoriums, theaters, or other large venues where excellent coverage area is essential.
Dimensions, Weight: 8.45" (21.5 cm) W x 8.18" (20.8 cm) D x 1.72" (4.4 cm) H, 3.1 lbs (1.4 kg)
Color: Black with white legends
Rack Mount: One EIA rack space high, 1/2 space wide
1 2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
Power: Wall mount Class II transformer (TFP 016)
Output: 24 VAC, 500 mA with 3-pin Molex plug
Temperature Range: Operating:0 C to 40 C (+32 F to +104 F)
Storage: -20 C to 70 C (-4 F to +158 F)
Operating Freqs: 72.1-75.9 MHz , 10 wideband channels (selectable), 7 non-standard wideband channels (selectable) OR 72.025-75.975 MHz, 77 narrowband channels (selectable)
Frequency Accuracy: .005% stability, 0-50 C
Deviation: Wideband: 75 kHz maximum. Narrowband: 5 kHz maximum
Pre-Emphasis: Wideband: 75 μsec. Narrowband: 300 μsec
RF Field Strength: Does not exceed 80 mV/m at 3 m
Nominal Range: Up to 1000 ft (304 m) Note: Maximum transmitter range is achieved using the ANT 005 coaxial antenna
Audio Proc. Functions: Reduced or Normal Compressor Gain
Compression Slope Control High Pass and Low Pass Filter Frequency control
Frequency Response: 22 16000 Hz, +1, -3 dB (adjustable)
Signal-to-Noise Ratio: 74 dB transmitted
Audio Level Control: Push-button audio level controls, adjustable to 0 to -50 dB
Audio Level Indicators: 10 LED array that reads +9 to -18 at 3 dB intervals
Power On Indicator: Green LED indicates power on
Phones Output: Mono signal, 1/4" TRS stereo jack, 67 mW, maximum in 50 ohms (adjustable 0 to -40 dB)
Audio Input: Combination 3-pin XLR, 1/4" TRS jack
Line Output: RCA jack, -10 dBV (.32 VRMS) output, impedance 100 Ω
LCD Menu Controls: Applications Presets (Music, Voice, Hearing Assist)
(Push-Button Selection) Bandwidth, Frequency, Audio Input Source (Microphone, Line, Simplex), High Pass Filter, Low Pass Filter, Compressor Slope, Compressor Gain, RF Output Power
Input Levels (Bal or Unbal): Nominal (1st Amber LED) Maximum (Input Overload LED) Absolute Maximum
