Biddle model 230415 4KV ac high pot tester

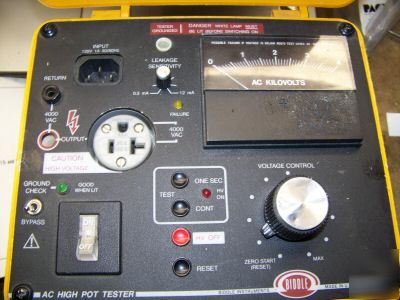

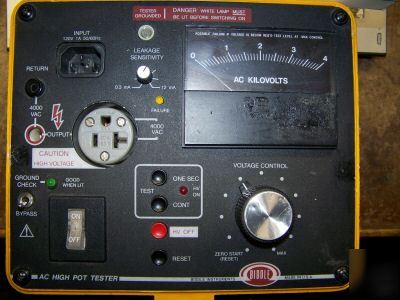

â AC High-Pot Testers are designed for safety and ease of operation, and readily adapt to development, maintenance or production testing. The AC High-Pot Testers feature a front-panel, NEMA 5-15R three-prong
utput receptacle. Test voltage is continuously adjustable from zero to full output, with a zero-start interlock. Leakage current trip level may be adjusted from 0.3 to 12 mA by a front-panel knob. Pushbuttons are provided to select one-second or continuous testing, to turn off the high
voltage and to reset the instrument. All high-voltage connections are recessed to prevent accidental contact with high voltage. The instruments also feature an interlock that prevents the high voltage from being applied if the supply ground wire is open or if the hot and neutral wires are
interchanged. A TESTER GROUNDED lamp lights to confirm the instrument is connected to a properly grounded power source. The AC High-Pot Testers will automatically shut down if ground circuit resistance of the test object exceeds 15 ohms at any time during testing.
• UL 544 — Electric Medical and Dental Equipment
• UL 982 — Motor-Operated Household Food Preparing Machines
• UL 1026 — Electric Household Cooking and Serving Appliances
• UL 1270 — Radio Receivers, Audio Systems, and Accessories
