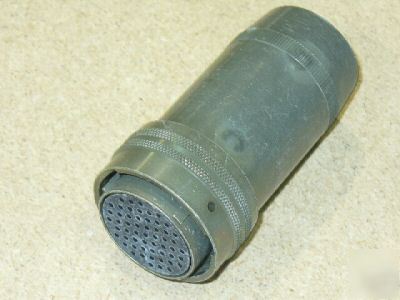

Connector,plug,electrical
BODY STYLE - 3B STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 3.000 INCHES MAXIMUM
OVERALL DIAMETER - 1.656 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET PIN
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 1.312 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP W/TELESCOPING BUSHING
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM
POLARIZATION METHOD - KEY, MULTIPLE KEY GROOVE
CONTACT POSITION ARRANGEMENT STYLE - CJAB 22-55 SINGLE MATING END
INSERT MATERIAL - RUBBER SINGLE MATING END
INCLUDED CONTACT QUANTITY - 55 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 7.5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT
III PRECIOUS MATERIAL AND WEIGHT - 0.055 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
