General radio simpson sound level meter calibrator
PLEASE CALL FREE (***)-544-3746! LIVE HELP EXPERT ADVICE TECHNICAL SUPPORT (***)-544-3746!
CLICK HERE TO GO DIRECTLY TO THE STORE
GENERAL RADIO SIMPSON SOUND LEVEL METER CALIBRATOR
PLEASE CLICK TWICE ON THE SCREEN BELOW TO VIEW THE DAVID RIDDLE COMPANY INFORMATIONAL VIDEO
IMPORTANT INFORMATION: WE OPERATE A PROFESSIONAL FACILITY THAT EXPERTLY REBUILDS THESE INSTRUMENTS TO MEET ORIGINAL FACTORY SPECIFICATIONS.
EACH INSTRUMENT IS DISASSEMBLED, INSPECTED, TESTED, AND ANY REQUIRED ELECTRICAL OR MECHANICAL PARTS ARE REPAIRED OR REPLACED, THE ENTIRE UNIT IS CLEANED, AND IF NEEDED, PROFESSIONALLY RE-PAINTED!
AFTER CAREFUL RE-ASSEMBLY, EVERY INSTRUMENT IS FULLY TESTED FOR ALL FUNCTIONS AND CALIBRATED IN OUR FULLY EQUIPPED TEST LAB!

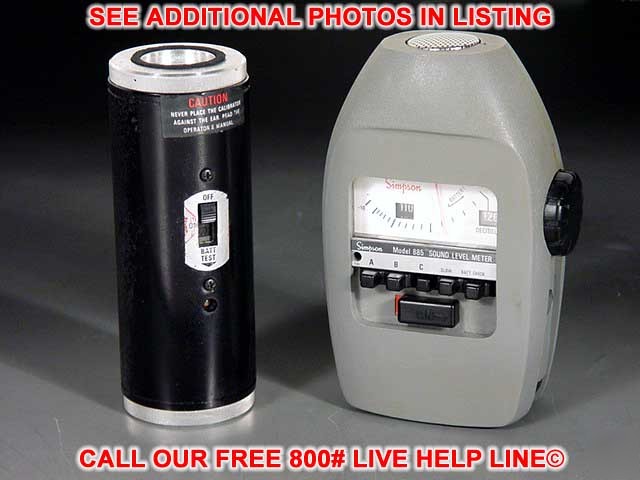

IMPORTANT NOTE #2: THIS SOUND LEVEL METER AND CALIBRATOR WERE MANUFACTURED BY GENERAL RADIO COMPANY AND BRANDED FOR THE SIMPSON ELECTRIC COMPANY.
* MEETS ANSI AND IEC STANDARDS
* RUGGED PRECISION MICROPHONE
* FET AND INTEGRATED-CIRCUIT DESIGN COMBINE PERFORMANCE WITH RELAIBILITY.
* CONVENIENT POCKET PROPORTIONS – SMALL AND LIGHT.
THE GENERAL RADIO 1563 (SIMPSON 885) IS A FULL FLEDGED STANDARD SOUND-LEVEL METER – IT CONFORMS TO BOTH NATIONAL AND INTERNATIONAL STANDARDS, MEETS ALL CRITERIA NECESSARY FOR THE NOISE PROVISIONS OF THE OCCUPATIONAL SAFETY AND HEALTH ACT, AND INCLUDES MOST OF THE FEATURES USUALLY FOUND IN LARGER, MORE CUMBERSOME, AND MORE EXPENSIVE UNITS.
THE 1563 (885) FITS IN THE PALM OF YOUR HAND AND OPERATES IN SEVERE ENVIRONMENTS FOR UP TO 50 HOURS ON SELF-CONTAINED BATTERES.
THE 1563 (885) USES A RUGGED, YET LABORATORY-QUALITY, CERAMIC MICROPHONE THAT CAN BE EASILY CHEKED, WHEN NECESSARY, BY THE INCLUDED 889 SOUND LEVEL CALIBRATOR.
AN OUTPUT JACK IS PROVIDED FOR USE WITH HEADPHONES OR RECORDERS, AND LOCK IS PROVIDED SO THE RANGE CONTROL CAN BE FIXED IN A SINGLE POSITION.
THE INSTRUMENT IS HOUSED IN A TOUGH PLASTIC CASE, TAPERED AT THE MICROPHONE END TO REDUCE THE EFFECTS OF CASE DIFFRACTION, AND MEETS ALL ANSI REQUIREMENTS FOR A TYPE 2 GENERAL PURPOSE SOUND LEVEL METER.
* SOUND LEVEL: 40DB TO 140 DB RE 20 µN / M².
* METER: RMS RESPONSE WITH FAST AND SLOW SPEEDS.
* MICROPHONE: LEAD-ZIRCONATE-TITANATE CERAMIC.
* OUTPUT: ? 1.2V RMS BEHIND 620 ? WITH METER AT FULL SCALE
* HARMONIC DISTORTION: ? 0.5% (0.1% TYPICAL) FROM 32HZ TP 8KHZ, C-WEIGHTED WITH METER AT FULL SCALE.
* CALIBRATION (WITH GENERAL RADIO 1562 (SIMPSON 889) SOUND-LEVEL CALIBRATOR): CAN BE CALIBRATED AT 1000HZ.
* TEMPERATURE: -10 TO +50C OPERATING; -40 TO +60C STORAGE, WITH BATTERIES REMOVED.
* MAGNETIC FIELD: 1 – OERSTED (80 A/M) 50- TO 60-HZ FIELD CAUSES 45 DB C-WEIGHTED INDICATION WHEN METER IS ORIENTED TO MAXIMUM SENSITIVITY FIELD.
* POWER: TWO STANDARD 9-V ALKALINE BATTERIES PROVIDE APPROXIMATELY 150 HOURS OF OPERATION.
* DIMENSIONS: 3.63 IN X 5.38 IN X 2.09 IN (97 X 137 X 53 MM)
THE GENERAL RADIO 1562 (SIMPSON 889) SOUND LEVEL CALIBRATOR IS DESIGNED FOR USE IN CHECKING INSTRUMENT SENSITIVITY (NOT FOR FREQUENCY RESPONSE).
THE 1562 (889) HAS A SINGLE-LEVEL OUTPUT AND IS WELL SUITED FOR CALIBRATING THE GENERAL RADO 1563 (SIMPSON 885) AT 1KHZ.
* FREQUENCY: 1000HZ, ±3%.
* SOUND PRESSURE LEVEL: 114 DB RE 20 µN/M².
* ACCURACY: (AT 23C AND 760 MM HG) IS ±0.5DB.
* TEMPERATURE: 0 – 55C OPERATING. TEMPERATURE COEFFICIENT OF SOUND PRESSURE LEVEL IS ZERO ±0.01 DB/C, 0 – 23 C; -0.017 ± 0.008 DB/C , 23 – 50 C.
* POWER: BATTERY OPERATED, USING STANDARD 9-V ALKALINE 1000H OF USE.
* MECHANICAL: CYLINDRICAL HOUSING.
* DIMENSIONS: (DIA X H): 2.38 X 4.44 IN (61 X 113 MM).
THIS LABORATORY GRADE SOUND LEVEL METER AND THE INCLUDED SOUND LEVEL CALIBRATOR PROVIDE A MEANS TO ACCURATELY MEASURE ALL ASPECTS OF SOUND PRESSURE LEVELS (SPL), WIDE BAND, WEIGHTED AND FILTERED.
THIS INSTRUMENT MEETS ALL SPECIFICATIONS FOR THE FULL RANGE OF ANSI TESTS FOR PRODUCT AND ENGINEERING ANALYSIS AND TO MEET OSHA AND ALL OTHER SPL EXPOSURE TESTING REQUIREMENTS.
SIMPSON 885 AND 889 SOUND LEVEL METER AND CALBIRATOR B6-1000-40
