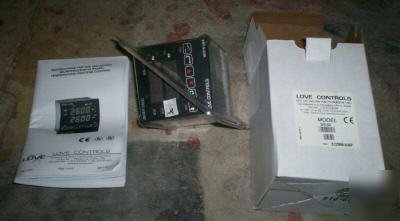

Love controls - model 26151-934 temperature control
Lot consists of a Love Controls (Div of Dwyer) Temperature control - Model number 26151 - 934. The 26150 retails for $420.00 - this is an upgrade over that standard model.
Temperature/Process Controller
1/4 DIN Self-Tune PID, Fuzzy Logic Software
Selectable Inputs: Thermocouple, RTD, DC voltage or DC current.
Thermocouple - 3 Megohms minimum.
Display: Two 4-digit, 7 segment, 0.56" (14.2 mm) high LED.
Accuracy: ±0.25% of span, ±1 least significant digit.
Supply Voltage: 100 to 240 VAC nominal, +10%-15%, 50 to 400 Hz, single phase; 132 to 240 VDC +10% -20%.
Operating Temperature: 14 to 131°F (-10 to 55°C).
Control Output Ratings: Relay: SPDT, 10 A @ 240 VAC resistive, 1/2 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm Relay: SPST, 3 A @ 240 VAC resistive; Proportional Current: 0-20 mA DC, scalable into 600 ohms maximum.
Front Panel Rating: NEMA 4X (IP65).
