Pulizzi power distribution rack mounted
Please visit our other categories for more items!

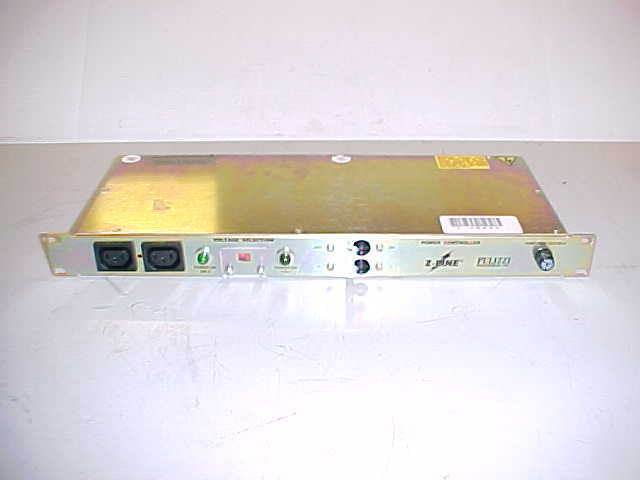

Pulizzi Power Distribution Rack Mounted
Dimensions: 21.00" L x 9.00"H x 4.00" W
RACK MOUNTED 19 x 1.75 (1U) x 7.0 VOLTAGE SELECTABLE 120V~ or 240V~ input/output Voltage output matches input EMI/RFI FILTERING Common Mode - line to ground Differential Mode - line to line Refer to Chart 4 on page 43 SPIKE/SURGE SUPPRESSION L-L (240V mode uses 270V MOV) L-N (120V mode uses 150V MOV)(10) IEC60320 C13 OUTLETS 2 on the front and 8 on the rear panel. Mating plug would be a C14 male. Rated by UL/CSA up to 250V~/15A Rated by VDE at 250V/10A each IEC320 (C20 MALE) POWER INLET On the rear panel, rated by UL/CSA at 125V~/20A or 250V~/16A and by VDE at 250V~/16A 2 INDICATOR LIGHTS on front panel. Each one for voltage selected and power on to system. OVERLOAD CIRCUIT PROTECTION Precision electromagnetic breakers, with a long time delay curve, provide both manual on/off switching and open (trip) automatically with an overload condition. Kick Guards are provided. PANEL MOUNT FUSE 1A slow blow fuse Front panel fuse surge suppression failure.
1) New Surplus: Equipment or parts are new.
2) Used, Tested, Good: We tested the unit and cycled it and found no obvious faults.
3) Used, Pulled, Good: Pulled from a working unit, and because of propietary design, the complete working unit was demanufactured, and the parts sold.
4) Used, Untested: Items that we did not test or cannot test. This item was received by us as an individual part or integrated equipment that could not or was not tested.
