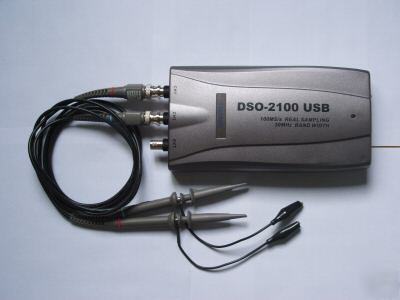

Usb digital oscilloscope 100MS/s sample rate portable
item photo item photo item photo
USB 2.0 Full-speed digital Oscilloscope 2090
* USB2.0 interface, no external power source required, easy to use.
* be suitable for notebook computer，product line maintenance，be used easily on business.
* Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
* High performance, 100MS/s real-time sampling, 40MHz Bandwidth.
* Operating System: Windows98,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA
* 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
* Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
* Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
* One computer can connect many DSO, extend channel easily.
* Labview\VB\VC\Delphi\C++Build Second Design instance.
port/line, waveform average, persistence, intensity
FFT, addition, subtraction, multiplication, division.
S/W CD, probes, manual, USB cord
Operating system: Windows98, Windows Me, Windows NT, Windows 2000,
Provide DEMO code (VCã€CVIã€VBã€LABVIEW) and technical support.
S/W CD, probes, manual, USB cord
Click here to download the driver
Click here to download the manual
Download the DSO_2090 USB VC SDK example
Download the DSO-2090 USB Second Design (VB) example
Download the DSO-2090 USB Second Design (LabVIEW8.2) example
