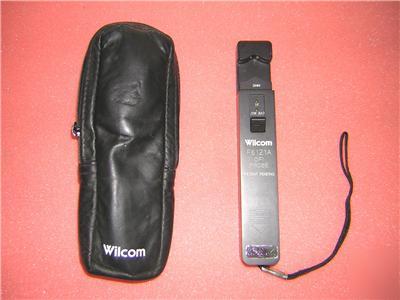

Wilcom F6121A hand held optical fiber identifier
WILCOM F6121A HAND HELD OPTICAL FIBER IDENTIFIER
* WILCOM HAND-HELD OPTICAL FIBER IDENTIFIER
* THE ITEM IS WORKING PROPERLY
The Wilcom Model F6121A Basic Optical Fiber Identifier is a rugged, easy-to-use installation and maintenance instrument which identifies optical fibers by detecting the optical signals being transmitted through a singlemode fiber. By utilizing local detection technology (non-destructive macro-bend detection which does not damage or overstress the fiber), the unit eliminates the need to open the fiber at the splice point for identification; eliminating the probability of interrupting service.
The Optical Fiber Identifier detects low frequency tones at 270 Hz, 1000 Hz and 2000 Hz. When traffic is present on the fiber under test, an audible tone can be heard as well as the traffic direction which is indicated by LEDs illuminating on the probe.
During installations, maintenance, rerouting, or restorations it is often necessary to isolate a specific fiber without disrupting service. A light source such as Wilcom's Model FS1316 used in conjunction with the Optical Fiber Identifier can make the job a lot easier.
MORE INFORMATION ON THIS PRODUCT CAN BE FOUND HERE: http://www.wilcominc.net/product_pdfs/F6121A.pdf
