Allen-bradley bar code decoder 2755-DS1A w/ scanner

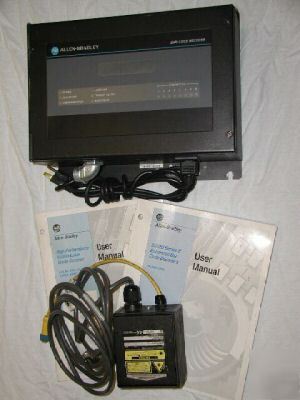

Allen-Bradley Bar Code Decoder #2755-DS1A w/ Laser Diode Scanner #2755-LD4B1
* (1) Allen-Bradley Enhanced Single-Head Bar Code Decoder #2755-DS1A w/ User Manual
* NEMA Type 1 enclosure
* 14 front panel LED indicators provide a visual indication of the operating status of the decoder.
* 2 line x 20 character per line alphanumeric LCD display for viewing:
* Bar code data
* Output counter values
* Decoder performance values
* AUX port - communicates with a standard ASCII terminal using the RS-232 interface.
* HOST port - supports RS-232, RS-422, and RS-485 (using Allen-Bradley DH485 protocol) interfaces. The HOST port allows for the exchange of data between the decoder and a host computer or Allen-Bradley PLC controller.
* Discrete I/O Modules - the decoder supports an optional I/O Module Board with 8 positions for output modules. Position 8 also accepts an input module.
* This unit is equipped with #2755-OB5S input modules in positions 1 & 2.
* (1) Allen-Bradley High Performance Visible Laser Diode Scanner #2755-LD4B1 w/ User Manual
* Fixed mount scanner
* 200 scans per second
* Read distance up to 84" (2.13m) depending on the symbol size, quality, and scanner range selected
* 10' (3.05m) decoder cable and 1' (0.31m) package detector cables are hard-wired to scanner
* 2 LED indicators - VALID and POWER provide a visual indication of scanner operation
* A multi-position rotary switch lets you adjust the scan angle to 1/2, 3/4, or a maximum angle.
* Units power up, POWER and CPU ACTIVE LEDs illuminate on the decoder and the POWER LED illuminates on the scanner. No other testing was performed.
