Cnc large DB25 breakout board for stepper motors

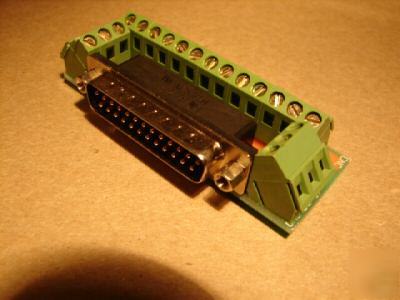

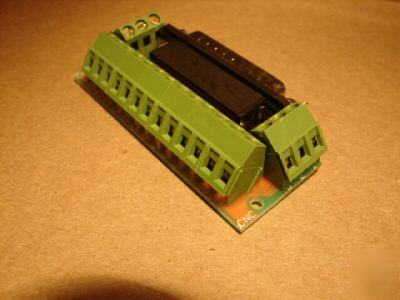

THIS BREAKOUT BOARD ACCEPTS LARGER WIRE THAN OUR SMALL BREAKOUT BOARD. THE SCREW LUGS ARE MOUNTED AT AN ANGLE FOR EASY CONNECTIONS. IT HAS TWO STANDOFF MOUNTING HOLES. THIS LOW COST BREAKOUT WAS SPECIFICALLY DESIGNED FOR CNC TO ALLOW THE PRINTER PORT SIGNALS FROM YOUR COMPUTER PRINTER PORT TO BE DISTRIBUTED (CONNECTED) TO YOUR STEPPER MOTOR DRIVER BOARDS (UP TO 8 SINGLE AXIS BOARDS CAN BE CONNECTED). IT HAS SCREW LUGS ALL THE WAY FROM PIN 1 TO PIN 18. PIN 18 BEING GROUND, AND IT HAS AN EXTRA GROUND LUG NEXT TO PIN 18, (THE SAME AS PIN 19 TO 25). WORKS WITH ANY CNC SOFTWARE USING LPT SIGNALS. WHY PAY $29 FOR A GENERAL PURPOSE BREAKOUT, USE THIS. YOU NEED ONE OF THESE FOR ANY CNC SETUP WITH SINGLE AXIS DRIVERS. PIN 1. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 2. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 3. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 4. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 5. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 6. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 7. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 8. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 9. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 10. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 11. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 12. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 13. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 14. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 15. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 16. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 17. GENERAL USE, OR STEP OR DIRECTION SIGNALS ANY AXIS. PIN 18. GROUND AND SAME AS PINS 19 TO 25. DB25 MALE VERSION
