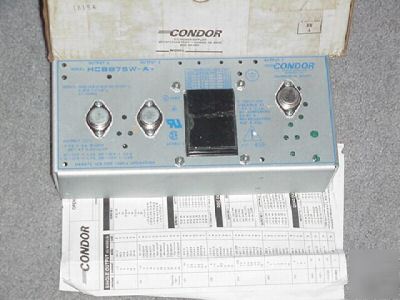

Condor HCBB75W (HCBB75W-a+) 3 output power supply
Power Supply; 100/120/240 VAC; Triple Output; 5 V @ 6 A; 47 to 63 Hz; 0.05%
AC Input: 100/120/220/240 VAC +10%, –13%. 47-63 Hz. Tolerance for 230 VAC operation is +15%, –10%. Derate output current 10% for 50 Hz operation.
Adjustment Range: ±5% minimum except HAD Series.
Line Regulation: ±0.05% for a 10% change.
Load Regulation: ±0.05% for a 50% load change.
Output Ripple: 3 mV + 0.05% of output voltage peak to peak maximum. All 3-terminal regulator outputs: 3 mV + 0.2% peak to peak maximum.
Transient Response: 50 microseconds for 50% load change.
Short Circuit and Overload Protection: Automatic current limit/foldback.
Overvoltage Protection: Built-in on 5 V models, set at 6.2 V ±0.4 V. Other models use optional overvoltage protection.
Remote Sensing: On all models except HA and HTAA; open sense lead protection built-in.
Stability: ±0.05% for 24 hours after warm up.
Temperature Rating: 0°C to 50°C, full rated, derated linearly to 40% at 70°C.
Temperature Coefficient: ±0.01%/°C maximum.
Efficiency: 5 V units — 45%; 12 V and 15 V units — 55%; 20 V and 24 V units — 60%.
