> Dwyer magnehelic® 2010AV differential pressure gage

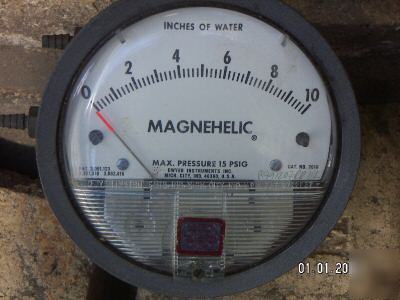

Dwyer magnehelic® 2010AV differential pressure gage
Dwyer® Magnehelic® 2010AV gage
range 0-10" w.c., minor divisions .20
For high accuracy — guaranteed within 2% of full scale. Dwyer's simple, frictionless Magnehelic® gage movement, it quickly indicates low air or non-corrosive gas pressures — either positive, negative (vacuum) or differential. The design resists shock, vibration and over-pressures. No manometer fluid to evaporate, freeze or cause toxic or leveling problems.
The industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid amplifier or fluidic systems. It also checks gas-air ratio controls and automatic valves, and monitors blood and respiratory pressures in medical care equipment.
Service: Air and non-combustible, compatible gases. (Natural Gas option available.)
Housing: Die cast aluminum case and bezel, with acrylic cover. Exterior finish is coated to withstand salt spray corrosion test.
Accuracy: ±2% of full scale throughout range at 70°F (21.1°C).
Pressure Limits: -20Ë Hg. to 15 psig.†(-0.677 bar to 1.034 bar).
Overpressure: Relief plug opens at approximately 25 psig (1.72 bar).
Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
Size: 4Ë (101.6 mm) Diameter dial face.
Mounting Orientation: Diaphragm in vertical position.
Process Connections: 1/8Ë female NPT duplicate high and low pressure taps - one pair side and one pair back.
Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g).
MANUFACTURERS SUGGESTED LIST PRICE: $63.50
