> Go switch 11-11510-00 proximity leverless limit switch

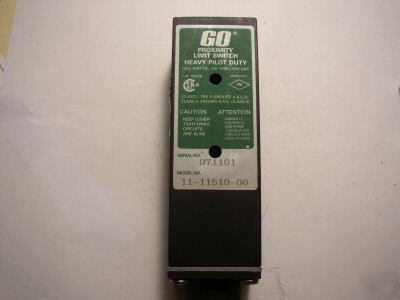

Go switch 11-11510-00 proximity leverless limit switch
GO Switch / General Equipment & Mfg. Co
Single Pole Double Throw (Form C)
Standard sensing - approx. 3/8" (10 mm) side sensing
Enclosure Material: Brass - coated with flat black lacquer
Outlet Position: Bottom of enclosure
Wiring Option: Terminal block only (not recommended for underwater use
Square Leverless Proximity Limit Switch
Their unique design, rugged enclosures, long sensing ranges, and global approvals make these switches the ideal choice wherever reliable position sensing is needed
11/2" (38 mm) square x 49/16" (116 mm) overall (Figure 1). Add 1/2" (13 mm) for bottom conduit outlet. Materials: Brass or stainless steel. Conduit Outlet: 1/2"-14 NPT. Five. locations (Figure 2).
Sensing: Target Material: Ferrous Sensing Range: Approx. 3/8" (10mm) standard; 9/16" (14mm) extended sensing Sensing Range with Target Magnet: 3 3/4" (95mm) (max)
Contacts: Materials: Silver cadmium oxide, gold flashed Forms: SPDT, DMDB Ratings: Resistive
Performance: Repeatability: .002" (.05mm) Response Time: 8 milliseconds Differential: Approx. 5/16" (8 mm) Operating Temperature: -40OF (-40OC) to 221OF (105OC). (Option to 350OF)
