High voltage hv power supply 2KV 2MA igbt laser hene xe


Precision Regulated 0-2000VDC @ 2mA
1. Condition: in Good Working and Cosmetic Conditions, Like New!!
2. Lot Includes: one unit as shown on the picture!
3. Note: this is a compact and light weight precision regulated/programmable direct current power supply manufactured by Bertan Associated Inc. for demanding scientific/technical/space research applications. The units output voltage is adjustable from 0 to 2000 VDC and can be controlled with a precision of better than +/-1 V . This unit was manufactured in the United States.
Model #PMT-20A/N, opt. # 3, ser. # 61483
In: +15VDC, -15VDC (12-to-18VDC range), out :0-2000VDC @ 2.0mADC
Dimensions: 7x4x1", the HV cable length: 4"; weight: 13 oz.
Control: internal or external (via a potentiometer resistor or a voltage input)

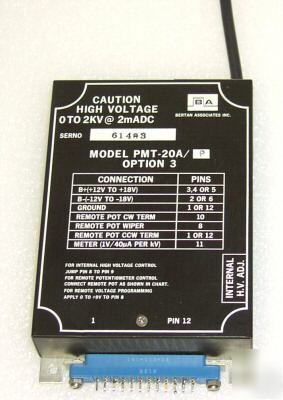

The pinout is imprinted on the unit's box (see the picture)
Great for your next high voltage project, hobby, experimenting!
Can be used to power a mW range HeNe laser, photomultiplier, channeltron/channelplate,
ion source, electron gun, pulsed magnetron driver, flash tube, Geiger tube, etc.
Very easy to set-up and use unit: all you need is a +/-15VDC power supply and a 5kOhm potentiometer
The unit produces dangerous HV - be extremely careful!
Pictures below represent the actual item!
