New egs sola hevi-duty sdn 10-24-100P power supply

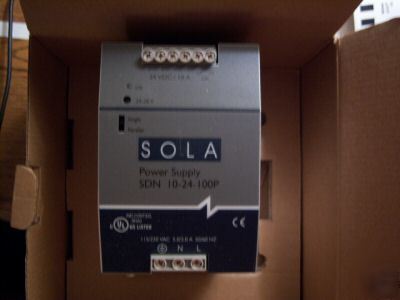

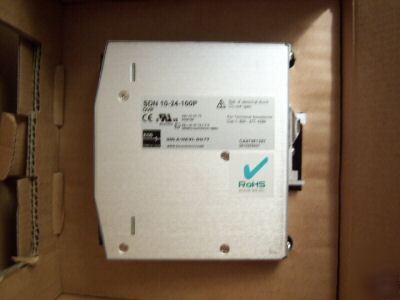

UP FOR SALE IS 1 BRAND NEW IN THE ORIGINAL BOX EGS SOLA HEVI-DUTY SDN 10-24-100p POWER SUPPLY
THESE ARE THE ONLY ALL WE HAVE!!!
BELOW IS SOME INFO GATHERED FROM THE INTERNET!
* Industrial/Machine control
* Semiconductor Fabrication Equipment
* Chassis Mount Bracket (SDN-PMBRK2)
115/230 VAC user select (no manual required)
<±2% overall (combination line, load, time and temperature related changes)
Fold Forward (Current rises, voltage drops to maintain constant power during overload up to max peak current)
Single or Parallel use is selectable via Front Panel
EN50081-1,-2 Class B EN55011, EN55022 Radiated and Conducted including Annex A.
EN50082-1, -2; EN61000-4-2 Level 4, EN61000-4-3 Level 3; EN61000-4-6 Level 3; EN61000-4-4 Level 4
input and Level 3 output; EN61000-4-5 Isolation Class 4, EN61000-4-11; Transient resistance according to VDE 0160/W2 over entire
Storage: -25oC...+85oC Operation. -10o-60oC full power with operation to 70oC possible with a linear derating to half power from 60oC to 70oC (Convection cooling, no forced air required). Operation up to 50% load permissable with sideays or front side up mounting orientation. The relative humidity is 95% RH, noncondensing; IEC68-2-2, 68-2-3. For operation below -10oC, contact Technical Services.
Protected against short-circuit, overload, open-circuit. Overvoltage protection (OVP) for output set >30.5 but <33 VDC, Auto Recovery.
Protection class I (IEC536), degree of protection: IP20 (IEC 529) Safe low voltage: SELV (acc. EN60950).
Green LED and DC OK signal (N.O. Contacted rated 300 mA @ 60 VDC)
Internally fused. External 10 A slow acting fusing for the input is recommended for SDN2.5, 4 5 and 10P models. A 16A slow acting fuse or time-delay circuit breaker is recommended for the SDN20 model.
Outputs are capable of providing high currents for short periods of time for inductive load startup or switching. Fusing may be required for wire/loads if 2x Nominal O/P current rating cannot be tolerated. Continuous current overload allows for reliable fuse tripping.
Simple snap-on system for DIN Rail TS35/7.5 or TS35/15 or chassis-mounted (optional screw mounting set SDN-PMBRK2 required).
Input: IP20-rated screw terminals, connector size range: 16-10 AWG (1.5-6 mm2) for solid conductors. 16-12 AWG (0.5-4 mm2) for stranded conductors.
Output: Two connectors per output, connector size range: 16-10 AWG (1.5-6 mm2) for solid conductors.
Fully enclosed metal housing with fine ventilation grid to keep out small parts
1. Input current ratings are conservatively specified with low input, line conditions, worst case efficiency and power factor.
2. Losses are heat dissipation in watts at full load, nominal input line.
3. Ripple/noise is stated as typical values when measured with a 20 MHz, bandwidth scope and 50 Ohm resistor.
4. All peak power is calculated at 24 Volt levels.
5. Full load, 100VAC Input @ Tamb = +25oC
<±2% overall (combination line. load, time and temperature related changes)
(Current rises, voltage drops to maintain constant power during overload up to max peak current)
5A through 30A units may be passively paralleled by selecting the "P" position of the switch on the unit. The SDN40 contains active current balancing.
EN61000-6-3, -4; Class B EN55011, EN55022 Radiated and Conducted including Annex A.
EN61000-6-1, -2; EN61000-4-2 Level 4, EN61000-4-3 Level 3; EN61000-4-6 Level 3; EN61000-4-4 Level 4 input and Level 3 output; EN61000-4-5 Isolation Class 4, EN61000-4-11; Transient resistance according to VDE 0160/W2 over entire load range.
Storage: -25oC...+85oC Operation. -10o-60oC full power with operation to 70oC possible with a linear derating to half power from 60oC to 0oC. (Convection cooling, no forced air required). Operation up to 50% load permissable with sideways or front side up mounting orientation. The relative humidity is less <90% RH, noncondensing; IEC 68-2-2, 68-2-3.
Protected against continuous short-circuit, overload, open-circuit. Protection class 1 (IEC536), degree of protection IP20 (IEC 529) Safe low voltage: SELV (acc.EN60950)
Green LED on, when Vout = 18V or greater.
Outputs are capable of providing high currents for short periods of time for inductive load startup or switching. Fusing may be required for wire/loads if 2x Nominal O/P current rating cannot be tolerated. Continuous current overload allows for reliable fuse tripping.
Simple snap-on system for DIN Rail TS35/7.5 or TS35/15 or chassis-mounted (optional screw mounting set SDN-PMBRK2 required).
Input: IP20 related screw terminals, connector size range: 16-10 AWG (1.5-6 mm2) for solid conductors.
16-12 AWG (0.5-4 mm2) for stranded conductors.
Output: two connectors per output, connector size range: 16-10 AWG (1.5 - 6 mm2) for solid connectors.
Fully enclosed metal housing with fine ventilation grid to keep out small parts.
1. For the SDN20-24-480C, single phase input is permissible but output is derated to 75% (15 Amps @ 24 VDC).
2. Input current ratings are conservatively specified with low input, worst case efficiency values and power factor.
3. Losses are heat dissipation in watts at full load, nominal input line.
4. Ripple/noise is stated as typical values when measured with a 20 MHz, bandwidth scope and 50 Ohm resistor.
1. Tilt unit slightly backwards.
3. Push downwards until stopped.
4. Push at the lower front edge to lock.
5. Shake the unit slightly to ensure
* Using the optional SDN-PMBRK2 accessory, the unit can also be screwed onto plane surfaces
Press button downwards (to unlock) and remove the
Instead of snapping a Sola SDN power supply unit on the DIN Rail, you can also attached it using the screw mounting set SDN-PMBRK2. This set consists of two metal brackets which replace the existing two aluminum profiles.
You need one SDN-PMBRK2 per unit.
In addition, two screws are required per SDN-PMBRK2 (e.g. M5 x 12), which are not included with the set.
* Remove the screw from the profile.
* Pull the profile outwards to remove.
* Push the SDN-PMBRK2 profile into the
groove as far as possible.
Note the orientation: The profile fits into the groove only as shown here.
