Noshok 1.5" dial 1/8" npt 0-60 psi pressure gauge

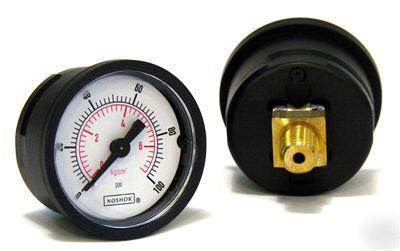

It DOES depict size and connection of the gauge.
1/8" NPT Brass Center Back Connection
ABS (Acrylonitrile-Butadiene-Styrene) Case
Comes with a Built-In Bezel, Molded as an Integral Part of the Case for Ease of Panel Mounting.
1/8" NPT Brass Center Back Connection
Brass & Nylon, or All-Brass, with Highly Polished Bearing Surfaces
±2.5% Full Scale, ASME Grade B
Plastic with White Background. UV Resistant.
* Outer Scale is psi in Black and the Inner Metric Scale is Red.
1. Working Pressure Limitations
The working pressure should be limited to 60% of the dial range.
The working pressure, where no sharp fluctuations occur, should be limited to 90% of the dial range.
-40° F to 140° F (-40° C to 60° C)
In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK reserves the right to make design changes without prior notice.
NOSHOK 100 SERIES STANDARD PRESSURE GAUGES are high quality dry pressure gauges designed to provide reliable service on applications not corrosive to brass. They are used in almost every area of manufacturing and are especially suited for applications in hydraulics, pneumatics, process, petrochemical, medical, pharmaceutical and most industrial and commercial
