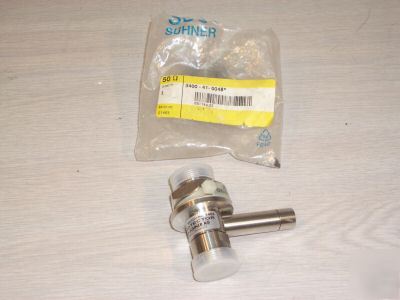

Huber+suhner® lightning protector: 3409.41.0048 rev.: e
High-Power/Low-IM Gas Capsule Lightning Protector
New and in original package. Seller has three units. Listing is for one unit. Please email seller if interested in multiple units.
Benefits: The protector can also be installed reversely; DC continuity for outdoor powering.
Mounting screw set 9075.99.0023 included. With capsule 9071.99.0548, 90 V.
Main path connectors Port 1: unprotected, 7/16 plug (male) - Port 2: protected, 7/16 jack (female)
Mounting and grounding: MH74/M8/brk (MH=bulkhead mounting/M=screw/brk=bracket)
Side of bulkhead: protected side
* Frequency range 806 to 2500 MHz 806 to 960 MHz 1710 to 2500 MHz
* Return loss 7 20.8 dB 7 26 dB 7 26 dB
* Insertion loss 9 0.1 dB 9 0.1 dB 9 0.1 dB
* RF CW power 9 1500 W 9 3000 W 9 1500 W
* PIM 3rd order -150 dBc max.
* Residual pulse energy 250 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) Main path - protected side
* Operating temperature -40 °C to +85 °C
* Waterproof degree IP 67 (according to IEC 60529, data refer to the coupled state)
* 2002/95/EC (RoHS) Telecom compliant
Piece Parts Material Surface Plating
Housing Brass SUCOPLATE (R) Plating
Port 1 center contact Brass Silver Plating
Port 2 center contact Copper Beryllium Alloy Silver Plating
- Residual pulse energy: typ. 250 uJ (test pulse 4 kV, 1.2 / 50 us 2 kA, 8 / 20 us IEC 6100-4-5) (measured with gas capsule73 Z-0-0-548 (90 V))
