Lot of 13 sets of sti optosafe P4100B-2 series

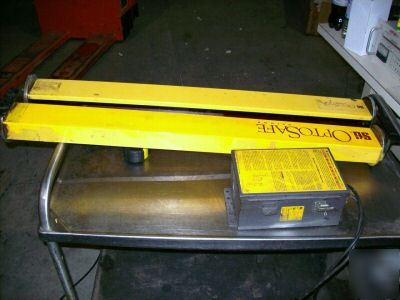

Lot of 13 Sets of STI OPTOSAFE P4100B-2 Series Safety Light Curtains

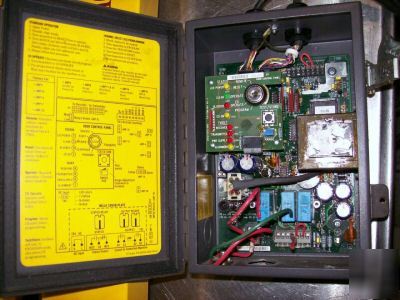

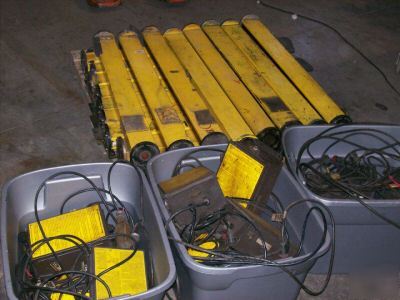

13 Sets of lights (26 in total) and 14 Control boxes... 1 spare box.
These came off a working CIncinnatti Test Mass Spectrometer.
SYS P41B-2 SFTY CURT 36" / 914 MM - 115v
Divergent Angle: +/- 3.5 degrees
SYS P41B-2 SFTY CURT 36" / 914 MM - 115v
Input: 115vac, 50/60 hz, 250A Fuse, 250 mA / 250 VAC SB
Two cords coming off the lights, One is 6' long and the other is 16' long.
Here are the specs I got off the web for them:
1 ft. to 100 ft. (0.3 m to 30.5 m).
1.25 in. (32 mm) diameter without Floating Blanking(1)
2.00 in. (51 mm) with one beam Floating Blanking
2.75 in. (70 mm) with two beam Floating Blanking
6 in. to 96 in. (152 mm to 2438 mm).
Two relays with force-guided contacts, NO, rated 4 Amps resistive at
250 VAC, 0.3 Amps Resistive at 250 VDC. Estimated mechanical life is 5,000,000
operations. Electrical life is 100,000 operations at 4 Amps resistive, 250 VAC or 2
³ 0.3) at 250 VAC or 0.3 A at 250 VDC.
One relay with force guided, NO and NC contacts, rated 4 Amps
< 0.020 seconds for models P4106B-2-F through
P4172B-2-F; < 0.030 seconds for models P4184B-2-F through P4196B-2-F.
115 VAC 15%, 23 VA, 50/60 Hz standard; 230 VAC ± 15%, 50/60 Hz or
GaAIAs Light Emitting Diode, 880 nm
Receiver: 5 ft. (1.5 m) standard. Transmitter: 15 ft. (4.6 m) standard.
Other cable configurations are available. Maximum length is 100 ft. (30.5 m) on
transmitter and 50 ft. (15.2 m) on receiver.
Circular, weather-tight disconnect of high strength, glass-filled
Heads are polyester powder painted aluminum; Controller enclosure is
5 – 60 Hz at 5g max. on all 3 axes.
10 g for 0.016 seconds, 1,000 shocks for each axis on 2 axes.
UL listed (file no. E163179), CSA certified (file no. LR90200), all models(2).
(1) Use of Channel Select may increase this value.
(2) Models P4184B-2-F and P4196B-2-F do not meet the check interval requirements
Specifications are subject to change without notice.
Manual can be found at: http://w2s.sti.com/stisf/ds/sf000/sf0002e.lasso?pcode=M030
