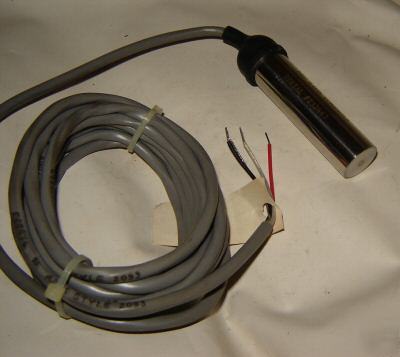

Red lion controls logic magnetic pickup LMPC0000
1. SUPPLY VOLTAGE : +9 to +17 VDC @ 25 mA max.
2. NPN OPEN COLLECTOR OUTPUT : VOH = 30 VDC max.; VOL = 1 Vmax. @ 30 mA, output current is limited to 40 mA.
3. OPERATING FREQUENCY : 10 KHz max.
4. OPERATING TEMPERATURE: -18°C to +60°C (0°F to +140°F)
5. CONSTRUCTION: Epoxy encapsulated in 0.750" ±0.005" dia. #304 stainless steel case. Plastic sensing face with stainless steel sensing pole.
6. OUTPUT CABLE : Integrally potted 10, 25 or 50 ft. PVC jacketed, 3-wire 22 AWG conductors, with stranded shield and 100% foil shield coverage.
RED = +VDC, BLK = COMMON, WHT = NPN O.C. OUTPUT
Condition: new, from old inventory
