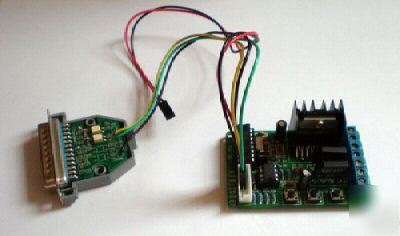

Stepper motor controller & driver (pc control directly)
This board can be controlled by personal computer directly, no extra programmer or controller is needed. The software is MACH3, can be downloaded from free. For its convenient and low price, it's suit for students trainning, people DIY, scientic test etc.
1. Matching motors: 6 wires or 4 wires stepper motor, 2-phase, amperage<2A.
2. Operation volage: 5VDC for the board, 9-40VDC for stepper motor.
3. Input signals are optocouple isolated by the special OPTOISO parallel cable.
1. Jumper set: JP1 (off), JP2 (on)
Common Empty (If it's 6 wires motor)
+5V (red), GND (black), CP (yellow), DIR (green)
4. Hook up the power supply of 5VDC and Stepper motor.
MACH3 > Config > Ports and Pins > Motor Outputs: X Axis (Step Pin# =2, Dir Pin# =3)
Any other question, please feel free to contact me. I will reply your message in 24 hours.
Nomally, The delivery time of airmail is 7-15 business days.
