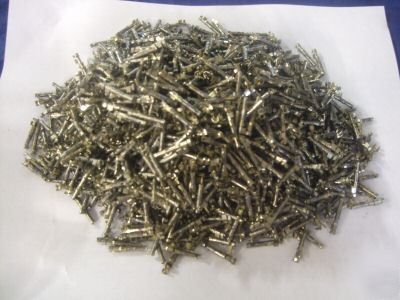

(2550) tyco electronics 1.57MM type iii+ sockets
Precision formed pin and socket contacts in Size 16. They are used in M Series, Special M Series, "G" Series, Metrimate, Metrimate Drawer, and CPC Series 1 and 4 connectors. Contacts feature a high normal force which provides a low resistance in critical applications such as dry circuit signal conditions. Mating entry is closed-ended to prevent damage from stubbing due to misalignment. Stainless steel spring provides superior normal force and retention in the housing. Tyco Electronics proprietary gold plating process ensures that specified plating thicknesses are controlled on the inside of the socket, which is the critical contact mating area. The contacts are formed from brass. Single contact rating is 13 amperes at 30°C T-Rise.
Insulation Diameter 2.03 - 2.54 mm (.08 - .1")
Wire/Cable Type: Discrete Wire
Overall insulation crimp diameter, including crimp barrel, must not exceed 3.18 mm
Termination End Plating: Bright Tin-Lead
Spring Material: Stainless Steel
Contact Mating Area Plating: Bright Tin-Lead
Used With G Series Connectors, CPC Connectors, M Series Connectors
CPC Connectors are available in our inventory
For additional info, feel free to contact us @ (***)-286-2680 9-5PM M-F EST.
